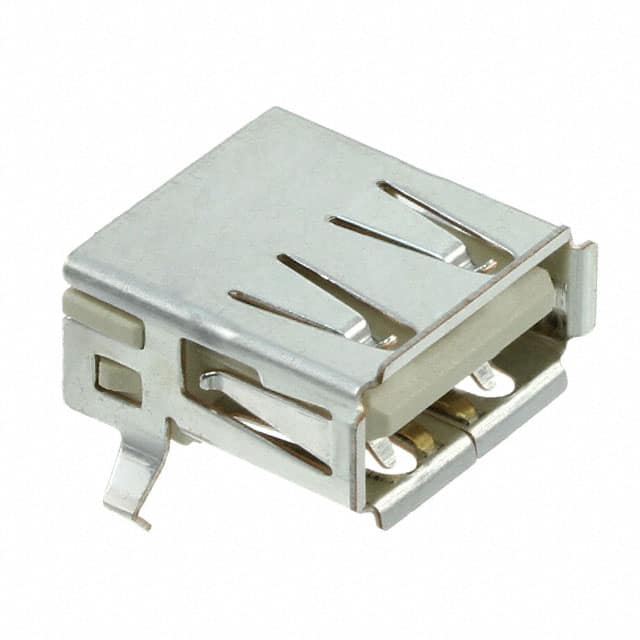

The TE Connectivity 292303-7 is a USB-A (USB TYPE-A) receptacle connector designed for USB 2.0 applications. It features 4 contacts arranged in a single port, with a shielded housing to reduce electromagnetic interference. The connector is configured for surface mount, right angle, horizontal mounting, with solder termination. It includes a board lock feature for secure attachment during soldering.
Electrical ratings include 1A per contact current capacity and 30VAC voltage rating. The connector is rated for 1500 mating cycles and operates over a temperature range of -55°C to 85°C. The shell material has been changed from phosphor bronze to stainless steel, as documented in a product change notification (E-16-016135).
This connector is suitable for PCB designs requiring a compact, low-profile USB interface. The right-angle mounting helps save vertical space, while the board lock ensures reliable mechanical retention. Compliance with RoHS3 and REACH is declared but unverified; MSL is rated 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.91 | $2.91 |
| 10+ | $2.61 | $2.61 |
| 25+ | $2.47 | $2.47 |
| 120+ | $2.19 | $2.19 |
| 240+ | $2.05 | $2.05 |
| 600+ | $2.04 | $2.04 |
| 2,520+ | $2.01 | $2.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
USB-A (USB TYPE-A) receptacle.
USB 2.0.
4 contacts.
1A per contact.
30VAC.
Surface mount, right angle, horizontal orientation. Also supports through hole (specified as 'Surface Mount, Right Angle; Through Hole').
Yes, it is shielded.
