| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shielding | |
| Specifications | |
| Storage Temperature | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage |

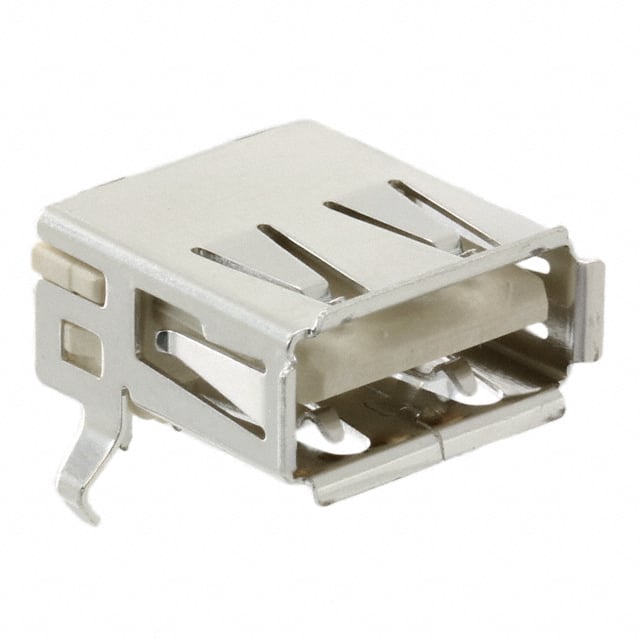

The TE Connectivity 292303-5 is a USB 2.0 Type-A receptacle connector designed for reliable data and power transfer. It features 4 contacts in a single port, with a right angle orientation for through hole mounting. The connector is shielded to reduce electromagnetic interference and includes a board lock feature for secure attachment to the PCB.
With a current rating of 1 A per contact and a voltage rating of 30 VAC, it is suitable for standard USB applications. The operating temperature range of -55°C to 85°C allows for use in demanding environments. The connector is rated for 1500 mating cycles, ensuring durability.
This connector is part of TE Connectivity's USB portfolio and is RoHS and REACH compliant (unverified). It is commonly used in computer peripherals, industrial equipment, and consumer electronics where a right-angle USB Type-A interface is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.23 | $1.23 |
| 10+ | $1.22 | $1.22 |
| 30+ | $1.04 | $1.04 |
| 120+ | $1.01 | $1.01 |
| 510+ | $0.99 | $0.99 |
| 1,020+ | $0.94 | $0.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
1 A per contact.
30 VAC.
Through Hole, Right Angle.
USB 2.0.
-55°C to 85°C.
1500 cycles.
