| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| ELV | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Solder Process Capability | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

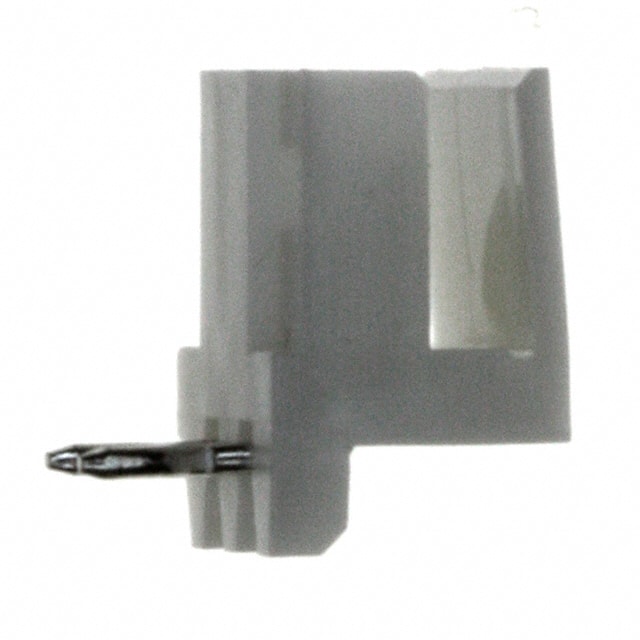

The TE Connectivity 292250-2 is a board-to-cable/wire shrouded header (male pins) with 2 positions arranged in a single row on a 2.00mm pitch. It features a right-angle through-hole mounting style with kinked pin solder termination for secure mechanical retention. The header is fully shrouded on all four walls, providing robust mating alignment and protection. Contacts are square brass with tin plating; the insulator is natural polyamide (PA66/Nylon 6/6) rated UL94 V-0. Insulation height is 5.80mm and contact length is 4.20mm. A detent lock fastening type ensures positive mating retention. The part is rated for 125VAC operation and is wave solder capable to 260°C.
The 292250-2 has 2 positions loaded in a single row.
The pitch is 2.00mm.
The voltage rating is 125VAC.
It uses through-hole, right-angle mounting.
The insulator is polyamide (PA66), Nylon 6/6, rated UL94 V-0.
