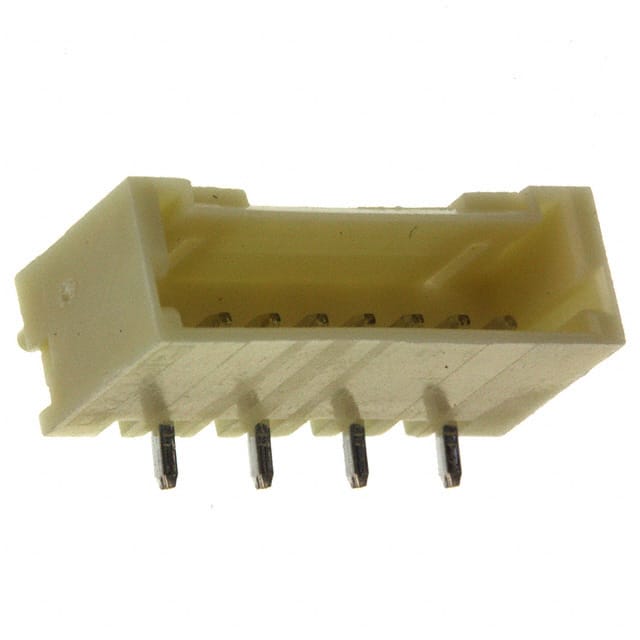

The TE Connectivity 292230-8 is a shrouded header connector designed for board-to-cable/wire applications. It features 8 male pins arranged in a single row with a 1.50mm pitch, making it suitable for compact electronic assemblies. The header is surface mount (SMT) with solder termination, providing reliable connections in automated manufacturing processes.
Key electrical specifications include a voltage rating of 50VAC and an operating temperature range of -30°C to 105°C. The insulation is made of glass-filled polyamide (PA) nylon, rated UL94 V-0 for flammability resistance. The contact material is brass with a tin finish, and the contacts are square-shaped. The shrouded design with 4 walls protects the pins and ensures secure mating with corresponding receptacles.
Additional design features include a detent lock for retention and a board guide for alignment during assembly. The header is beige in color and has an insulation height of 6.91mm and contact length of 2.40mm. This connector is ideal for applications requiring a compact, reliable interconnect solution in a single-row, surface-mount package.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.07 | $1.07 |
| 10+ | $0.99 | $0.99 |
| 500+ | $0.99 | $0.99 |
| 1,000+ | $0.91 | $0.91 |
| 2,500+ | $0.85 | $0.85 |
| 5,000+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
1.50mm.
50VAC.
Surface mount.
-30°C to 105°C.
Polyamide (PA) Nylon, glass filled.
Tin.
