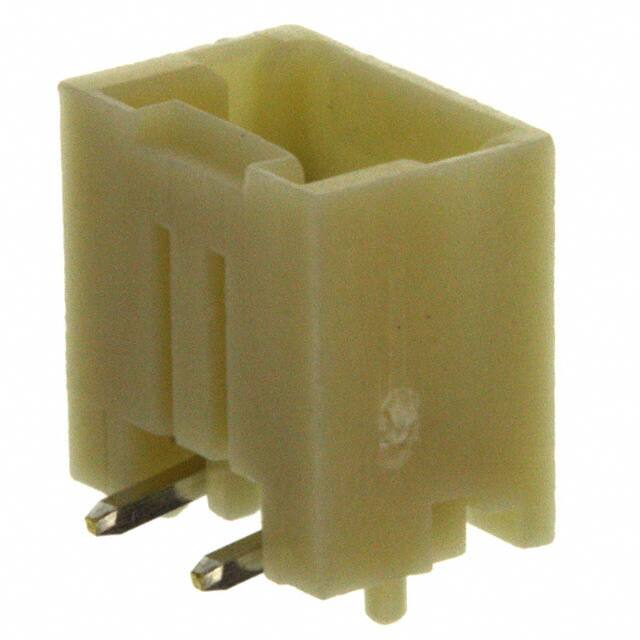

The TE Connectivity 292230-3 is a Mini CT series shrouded header designed for board-to-cable/wire interconnections. It features 3 positions in a single row with a 1.50mm pitch, making it suitable for compact electronic assemblies. The header uses male square pins made of brass with a tin contact finish, ensuring reliable electrical connections.
This surface mount header includes a 4-wall shrouding and a detent lock fastening system for secure mating. The insulation is made of glass-filled polyamide (nylon) in a beige color, with an insulation height of 6.91mm. It also includes a board guide feature to assist with alignment during assembly.
Rated for 50VAC operation, the current rating varies by wire gauge. The operating temperature range is -30°C to 105°C, and the material has a UL94 V-0 flammability rating. This component is RoHS3 compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.73 | $0.73 |
| 10+ | $0.63 | $0.63 |
| 25+ | $0.60 | $0.60 |
| 100+ | $0.53 | $0.53 |
| 250+ | $0.43 | $0.43 |
| 500+ | $0.43 | $0.43 |
| 1,000+ | $0.39 | $0.39 |
| 2,500+ | $0.37 | $0.37 |
| 5,000+ | $0.36 | $0.36 |
| 10,000+ | $0.35 | $0.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 292230-3 has 3 positions in a single row.
The pitch is 1.50mm.
The voltage rating is 50VAC.
Surface mount (SMD) with solder termination.
-30°C to 105°C.
RoHS3 compliant (unverified).
Brass contacts with tin finish.
