| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,700 pcs
|
7700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

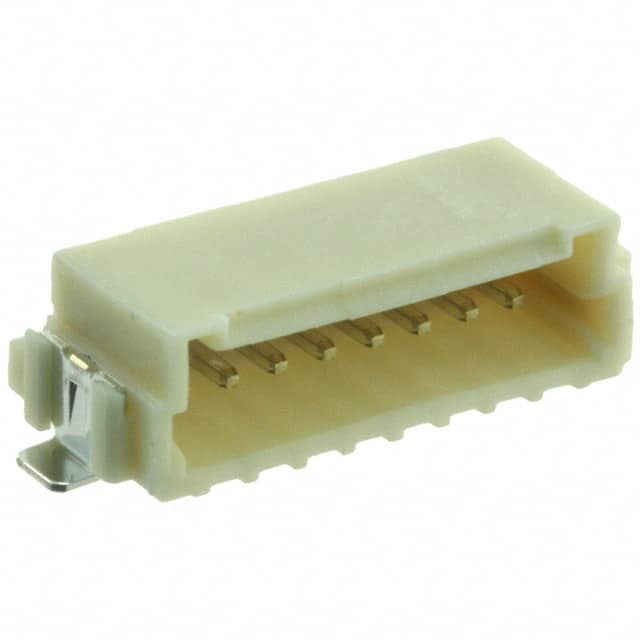

The TE Connectivity 292228-8 is a shrouded male pin header designed for board-to-cable/wire applications. It features 8 positions arranged in a single row with a 1.5mm pitch, providing compact connectivity. The connector is surface mounted with a right-angle orientation, making it suitable for space-constrained designs.
Key specifications include a voltage rating of 50VAC and an operating temperature range of -30°C to 105°C. The contact material is brass with a tin finish, and the insulator is glass-filled polyamide (PA6T). The housing includes a detent lock for secure mating and solder retention features for reliable assembly.
This header is fully shrouded with four walls for protection, and the insulation height is 4.9mm. The beige insulator carries a UL94 V-0 flammability rating. The component is designed for a current rating that varies with wire gauge, offering flexibility in power delivery.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.04 | $1.04 |
| 100+ | $1.01 | $1.01 |
| 700+ | $0.87 | $0.87 |
| 1,400+ | $0.74 | $0.74 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
1.5mm (0.059 inches).
Varies by wire gauge; no fixed rating provided.
50VAC.
Surface mount, right angle.
-30°C to 105°C.
Brass with tin finish.
