| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,050 pcs
|
1050 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

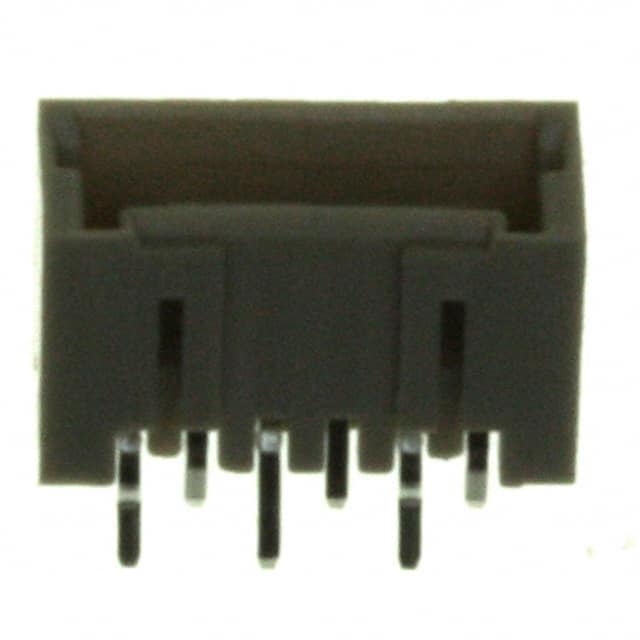

The TE Connectivity 292207-6 is a 6-position, single-row header connector designed for board-to-cable/wire applications. It features a 1.50mm (0.059") pitch and a shrouded 4-wall design for improved mating alignment and protection.
It uses through-hole termination with kinked pins for secure solder attachment. The square male pins are made of brass with a tin contact finish of 39.4µin (1.00µm). The connector is rated for 50VAC and has an operating temperature range of -30°C to 105°C.
The insulation is made from glass-filled polyamide (nylon) in gray, rated UL94 V-0 for flammability. A detent lock provides secure retention, and a board guide feature aids in assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.68 | $0.68 |
| 10+ | $0.58 | $0.58 |
| 25+ | $0.55 | $0.55 |
| 100+ | $0.50 | $0.50 |
| 250+ | $0.45 | $0.45 |
| 1,000+ | $0.41 | $0.41 |
| 2,600+ | $0.40 | $0.40 |
| 5,200+ | $0.37 | $0.37 |
| 10,400+ | $0.37 | $0.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 6 positions in a single row.
The pitch is 1.50mm (0.059 inches).
The voltage rating is 50VAC.
It is a through-hole mounting connector with kinked pin solder termination.
The operating temperature range is -30°C to 105°C.
Yes, it features a shrouded 4-wall design for enhanced protection.
