| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21,500 pcs
|
21500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
260 pcs
|
260 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

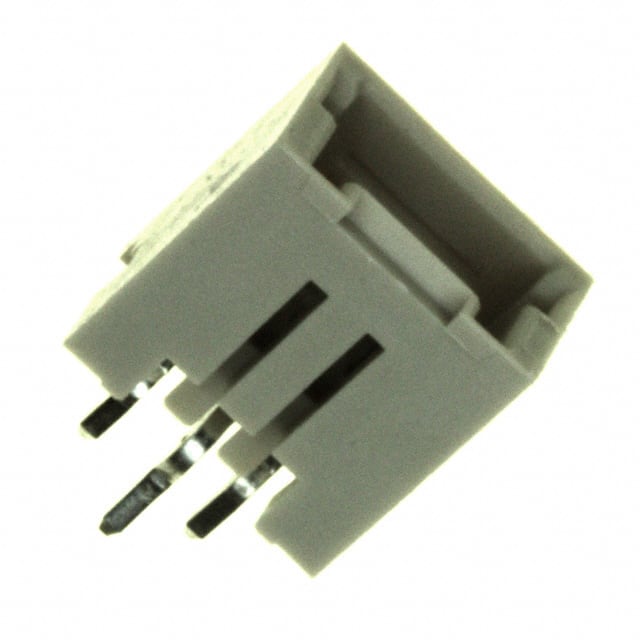

The TE Connectivity 292207-3 is a 3-position single row shrouded header from the AMP Mini CT series, designed for board-to-cable/wire applications. It uses male square pins with tin contact finish (39.4 µin) on brass contacts, ensuring reliable electrical connections.
Key mechanical specifications include a 1.5mm pitch, through hole mounting with kinked pin solder termination, and a full 4-wall shroud with detent lock fastening. The insulation is gray glass-filled nylon (UL94 V-0 rated), and the component includes an integrated board guide for alignment during assembly.
This header is rated for 50VAC operation and an operating temperature range of -30°C to 105°C. Contact current rating varies by wire gauge, making it suitable for moderate power signal and power distribution within its voltage rating.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.39 | $0.39 |
| 10+ | $0.34 | $0.34 |
| 25+ | $0.33 | $0.33 |
| 100+ | $0.30 | $0.30 |
| 250+ | $0.29 | $0.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 3 positions arranged in 1 row.
The pitch is 1.50mm.
The voltage rating is 50VAC.
It uses through hole mounting with kinked pin, solder termination.
The operating temperature range is -30°C to 105°C.
Yes, it is fully shrouded with a 4-wall enclosure and detent lock mechanism.
The contacts have a tin finish with thickness of 39.4µin (1.00µm).
