| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

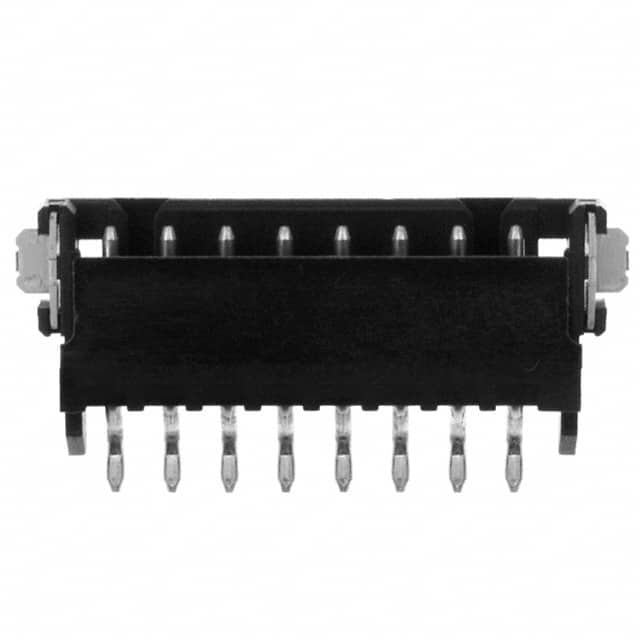

The TE Connectivity 292173-8 is a CT BOX Type header connector designed for board-to-cable/wire applications. It features 8 positions in a single row with a 2.00mm pitch, making it suitable for compact wire-to-board connections. The connector uses surface mount, right angle termination with solder contacts, and the male pins are made of brass with a tin finish.
The header is fully shrouded with a 4-wall design and includes a detent lock for secure mating. Additional features include a board guide and solder retention for reliable assembly. The insulation is black polyamide (PA6T) glass filled material rated UL94 V-0 for flammability. The voltage rating is 125VAC, and the current rating varies by wire gauge.
| Qty | Low | High |
|---|---|---|
| 10,000+ | $1.07 | $1.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.00mm (0.079 inches).
It has 8 positions in a single row.
Surface mount, right angle.
125VAC.
Yes, it has a shrouded 4-wall design.
Black polyamide (PA6T) glass filled, rated UL94 V-0.
