| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25,500 pcs
|
25500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
12,500 pcs
|
12500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-06-03 03:15:53 |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

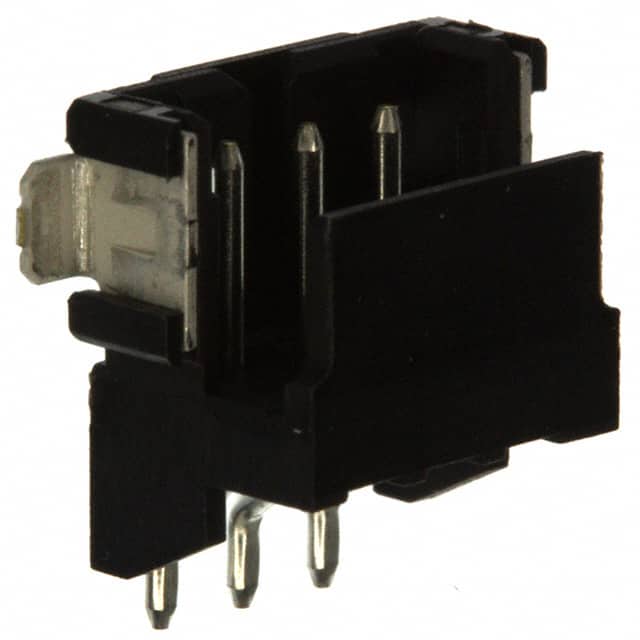

The TE Connectivity 292173-3 is a 3-position, single-row, shrouded header connector from the CT Box Type series. It features a 2.00mm pitch and a surface mount, right angle mounting style, making it suitable for board-to-cable/wire applications.
The connector is fully loaded with all positions populated and uses male pin contacts made of brass with a tin finish. The housing is molded from black polyamide (PA6T) glass-filled material with a UL94 V-0 flammability rating. It includes a shrouded 4-wall design with a detent lock fastening system for secure mating.
Additional features include a board guide and solder retention for reliable assembly. The voltage rating is 125VAC, and the current rating varies by wire gauge. The connector is RoHS3 compliant and has an MSL of 1 (unlimited floor life).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
| 10+ | $0.84 | $0.84 |
| 25+ | $0.82 | $0.82 |
| 100+ | $0.76 | $0.76 |
| 250+ | $0.73 | $0.73 |
| 500+ | $0.61 | $0.61 |
| 1,000+ | $0.58 | $0.58 |
| 2,500+ | $0.56 | $0.56 |
| 5,000+ | $0.54 | $0.54 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.00mm.
It has 3 positions in a single row, all loaded.
Surface mount, right angle.
125VAC.
Brass contacts with a tin finish.
Yes, it is listed as RoHS3 compliant.
Polyamide (PA6T), Nylon 6T, glass filled, rated UL94 V-0.
