| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
26,000 pcs
|
26000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| EU ELV | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Solder Process Capability | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

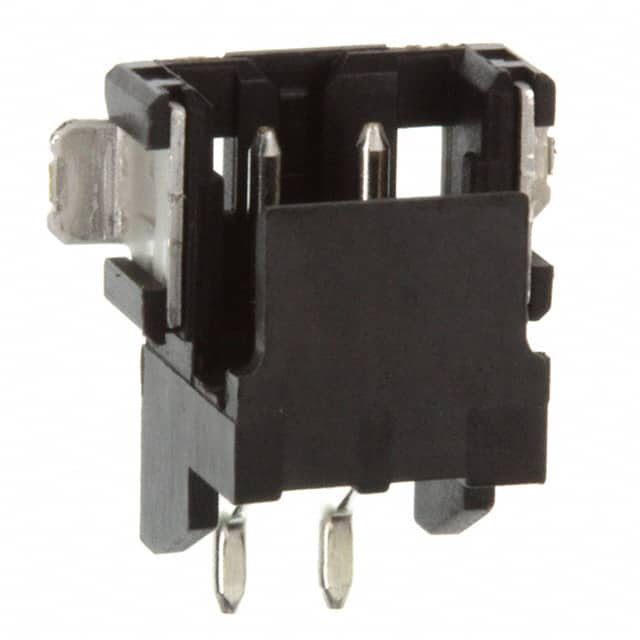

The TE Connectivity 292173-2 is a 2-position, single-row shrouded header designed for board-to-cable/wire applications. It features a 2.00mm pitch and surface mount, right angle termination with solder retention. The header is fully shrouded with a 4-wall design and includes a detent lock fastening system for secure mating.
The contacts are made of brass with a tin finish, and the insulator is black polyamide (PA6T) glass-filled material rated UL94 V-0. The part is rated for 125VAC and current varies by wire gauge. It includes board guide and solder retention features for reliable assembly.
The component is RoHS3 compliant, REACH unaffected, and has MSL 1 unlimited. It is also EU ELV compliant and low halogen (Br, Cl, F, I < 900 ppm). The solder process capability is reflow solder to 245°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.01 | $1.01 |
| 10+ | $0.91 | $0.91 |
| 25+ | $0.91 | $0.91 |
| 100+ | $0.83 | $0.83 |
| 250+ | $0.82 | $0.82 |
| 500+ | $0.73 | $0.73 |
| 1,000+ | $0.70 | $0.70 |
| 2,500+ | $0.67 | $0.67 |
| 5,000+ | $0.65 | $0.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.00mm.
The voltage rating is 125VAC.
Surface mount, right angle.
2 positions, all loaded.
Tin.
Yes, it is RoHS3 compliant.
Polyamide (PA6T), Nylon 6T, glass filled, black color.
