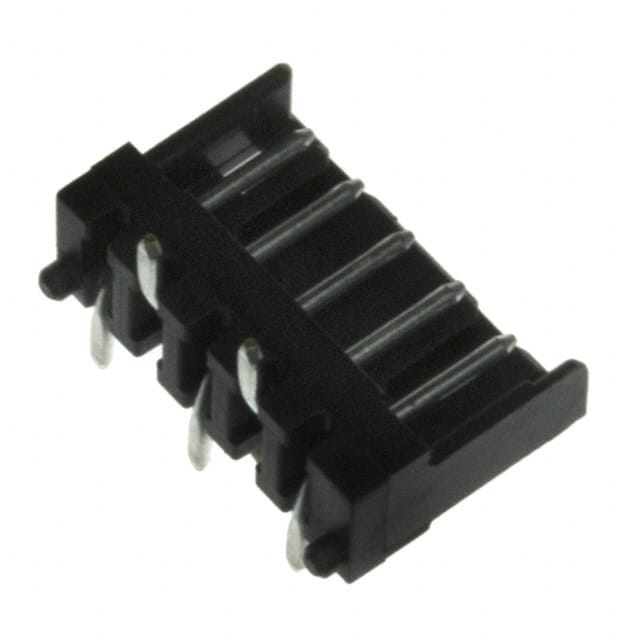

292171-5 TE Connectivity 292171-5 is a 5-position, 2.00mm pitch surface mount header. It features a shrouded design with detent lock, tin-plated brass contacts, and is rated for 4A and 125 VAC.
Mfr Part #:

292171-5

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 292171-5 is a 5-position, 2.00mm pitch surface mount header. It features a shrouded design with detent lock, tin-plated brass contacts, and is rated for 4A and 125 VAC.
✓ Total Stock: 2,560 pcs
$ Price Range: $0.73 - $1.38

292171-5 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
2,560 pcs
On Request
2560 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

292171-5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector System
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Height
Housing Material
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Length
Material Flammability Rating
Mating Alignment Type
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature Range
Operating Voltage
PCB Mount Retention
Pitch
Sealed
Shrouding
Style
Tape & Reel
Termination
UL Flammability Rating
Voltage Rating
Width
View Similar Products (0)

292171-5 Description

Short technical summary and product information.

The TE Connectivity 292171-5 is a 5-position, single-row, surface mount header from the AMP CT series. It has a 2.00mm pitch and a vertical PCB mounting orientation, making it suitable for compact wire-to-board applications. The partially shrouded 3-wall design with detent lock provides secure mating and polarization alignment. Contacts are made of brass with tin plating, rated for 4A per contact and 125VAC. The housing is constructed from PA6T glass-filled nylon with UL94 V-0 flammability rating, and it operates over a temperature range of -40°C to 105°C. The header includes board locks for PCB retention and is packaged in a tube. It is RoHS3 compliant.

292171-5 Quick Information

Product Type: Header, Male Pins
Canonical Name: CONN HEADER SMD 5POS 2MM
Subcategory: Partially Shrouded Header

292171-5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

292171-5 Estimated Pricing

Qty Low High
1+ $1.38 $1.38
10+ $1.22 $1.22
25+ $1.07 $1.07
120+ $0.98 $0.98
520+ $0.89 $0.89
1,000+ $0.85 $0.85
2,520+ $0.74 $0.74
5,000+ $0.73 $0.73

Estimated market price range - modelled values for guidance only, not live distributor offers.

292171-5 Features

  • 5 positions in single row configuration.
  • 2.00mm pitch for compact designs.
  • Surface mount with vertical orientation.
  • Shrouded 3-wall header with detent lock.
  • Rated for 4A and 125VAC operation.

292171-5 Applications

  • Wire-to-board connections in consumer electronics.
  • Signal transmission in automotive applications.
  • Compact internal wiring harnesses.
  • Power distribution in industrial control systems.

292171-5 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

5 positions.

What is the pitch?

2.00mm.

What is the current rating?

4A per contact.

What is the voltage rating?

125VAC.

What is the mounting type?

Surface Mount.

What is the operating temperature range?

-40°C to 105°C.

Is it RoHS compliant?

Yes, RoHS3 compliant.
