| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,500 pcs
|
15500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish - Mating | |
| Contact Finish - Post | |
| Contact Length | |
| Contact Length - Mating | |
| Contact Length - Post | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Failure Rate | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

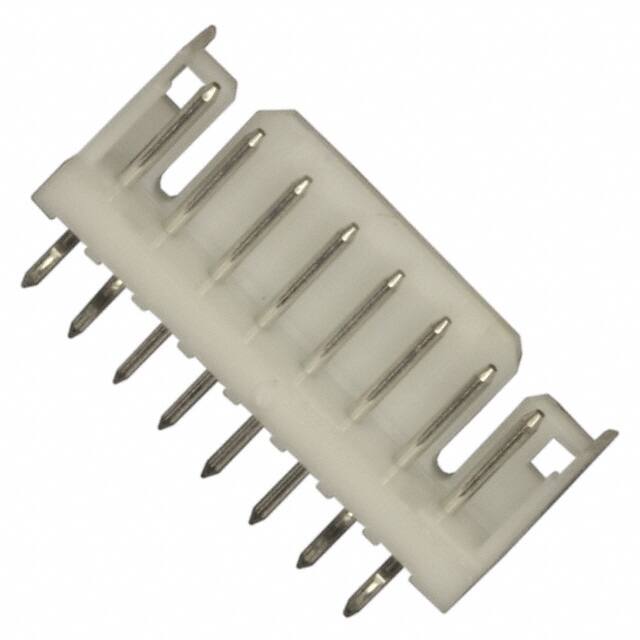

The TE Connectivity 292161-8 is a rectangular header connector from the CT series. It features 8 positions in a single row with a 2.00mm (0.079in) pitch. The connector is through-hole mounted with kinked pin solder termination. The shrouded - 3 wall design includes a detent lock fastening type for secure mating. Contact length is 4.50mm mating, 3.20mm post, and 9.40mm overall. Insulation height is 6.80mm. Contacts are square-shaped, made of brass with a tin finish on both mating and post ends. The insulation material is Polyamide (PA66) Nylon 6/6 in natural color, with a UL94 V-0 flammability rating. Voltage rating is 125VAC. Current rating varies by wire gauge. This connector is designed for board-to-cable/wire applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.82 | $0.82 |
| 10+ | $0.62 | $0.62 |
| 25+ | $0.61 | $0.61 |
| 100+ | $0.60 | $0.60 |
| 500+ | $0.58 | $0.58 |
| 1,000+ | $0.56 | $0.56 |
| 2,500+ | $0.56 | $0.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 8 positions, all loaded.
The pitch is 2.00mm (0.079in).
It is a through hole mounting connector with kinked pin solder termination.
The voltage rating is 125VAC.
It uses a detent lock fastening type.
The insulation is Polyamide (PA66) Nylon 6/6 with a UL94 V-0 flammability rating.
Both mating and post contacts have a tin finish.
