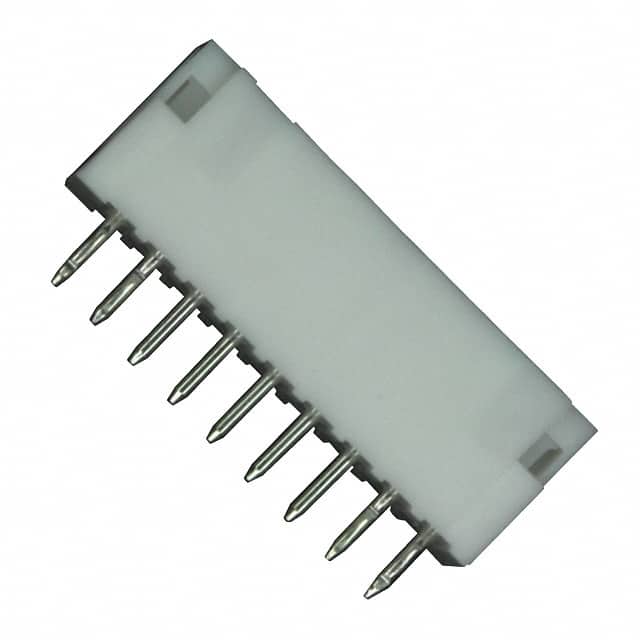

292132-9 TE Connectivity 292132-9 is a 9-position, 2mm pitch header with through hole mounting and shrouded design. It features tin-plated brass contacts and a natural nylon 6/6 insulator.
Mfr Part #:

292132-9

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 292132-9 is a 9-position, 2mm pitch header with through hole mounting and shrouded design. It features tin-plated brass contacts and a natural nylon 6/6 insulator.
✓ Total Stock: 700 pcs
$ Price Range: $0.61 - $1.16

292132-9 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
700 pcs
On Request
700 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

292132-9 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Overall Contact Length
Pitch
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

292132-9 Description

Short technical summary and product information.

This is a 9-position header connector from TE Connectivity, part of the rectangular connector family. It features a 2.00mm pitch and a shrouded 4-wall design for secure mating. The connector is designed for board-to-cable/wire applications.



Key specifications include a voltage rating of 125VAC, current rating varies by wire gauge, and a flammability rating of UL94 V-0. The contacts are made of brass with tin finish, and the insulator is natural polyamide (PA66/Nylon 6/6). The mounting type is through hole with kinked pin solder termination.



The header has a detent lock fastening type for reliable connection. The overall contact length is 0.358" (9.09mm) with a mating contact length of 4.20mm. The insulation height is 6.80mm. This connector is suitable for various wire-to-board applications where a compact, reliable connection is needed.

292132-9 Quick Information

Product Type: Header
Canonical Name: TE Connectivity 292132-9 Header, Male Pins, 9 Position, 2mm Pitch, Through Hole, Shrouded
Subcategory: Male Pins

292132-9 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

292132-9 Estimated Pricing

Qty Low High
1+ $1.16 $1.16
10+ $0.99 $0.99
25+ $0.95 $0.95
100+ $0.89 $0.89
250+ $0.81 $0.81
500+ $0.73 $0.73
1,000+ $0.66 $0.66
2,500+ $0.62 $0.62
5,000+ $0.61 $0.61

Estimated market price range - modelled values for guidance only, not live distributor offers.

292132-9 Features

  • 9 positions with 2.00mm pitch spacing.
  • Shrouded 4-wall design for secure mating.
  • Through hole mounting with kinked pin solder.
  • Rated for 125VAC operation.
  • UL94 V-0 flammability rated insulator.

292132-9 Applications

  • Board-to-cable/wire interconnection applications.
  • Compact wire-to-board connector systems.
  • General purpose industrial electronics.

292132-9 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

9 positions.

What is the pitch?

2.00mm (0.079").

What is the voltage rating?

125VAC.

What is the mounting type?

Through hole.

What is the current rating?

Varies by wire gauge.

What is the contact finish?

Tin.

What is the insulation material?

Polyamide (PA66), Nylon 6/6.
