| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
132,000 pcs
|
132000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Halogen Free | |
| Hold Current | |
| Industrial Grade | |
| Initial Resistance (Min) | |
| Length | |
| Marking Code | |
| Max Fault Current | |
| Max Voltage | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Post-Trip Resistance (Max) | |
| Power Dissipation | |
| Resistance | |
| SVHC Present | |
| Tape & Reel | |
| Thickness | |
| Thickness (Max) | |
| Time to Trip | |
| Trip Current | |
| Type | |
| Voltage | |
| Width |

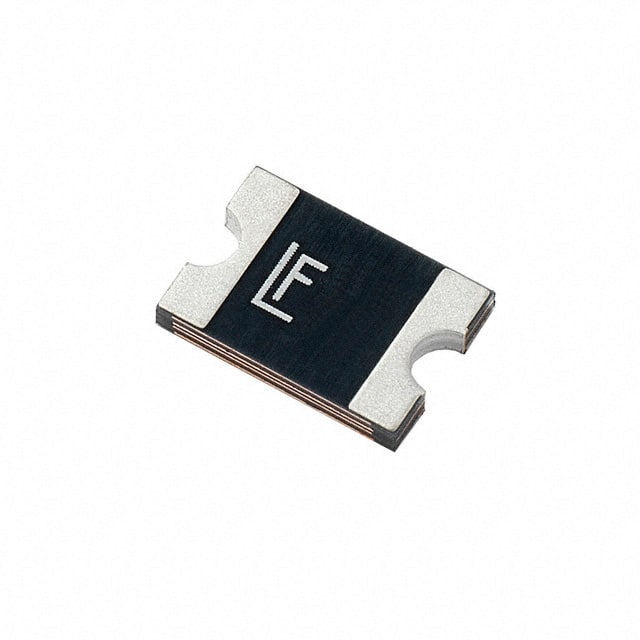

The 2920L260PR is a polymeric PTC resettable fuse from Littelfuse's 2920L Series. It has a hold current of 2.6A and a trip current of 5.0A, with a maximum voltage rating of 6V and a fault current capability of 40A. Typical power dissipation is 1.5W. The time to trip at 8A is 10 seconds maximum. Initial resistance is 25 mΩ minimum, and post-trip resistance is 75 mΩ maximum (measured one hour after tripping or reflow soldering). The device is housed in a 2920 (7351 Metric) concave surface mount package measuring 7.35mm x 5.12mm with a maximum thickness of 1.25mm. It is marked with code LF260. The operating temperature range is -40°C to 85°C. This component is suitable for resettable overcurrent protection in circuits where automatic recovery is desired.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.98 | $0.98 |
| 10+ | $0.78 | $0.78 |
| 50+ | $0.59 | $0.59 |
| 100+ | $0.57 | $0.57 |
| 200+ | $0.53 | $0.53 |
| 500+ | $0.49 | $0.49 |
| 1,000+ | $0.44 | $0.44 |
| 2,000+ | $0.37 | $0.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.6 A.
5.0 A.
6 V.
40 A.
10 seconds maximum.
2920 (7351 Metric) concave surface mount package.
-40°C to 85°C.
