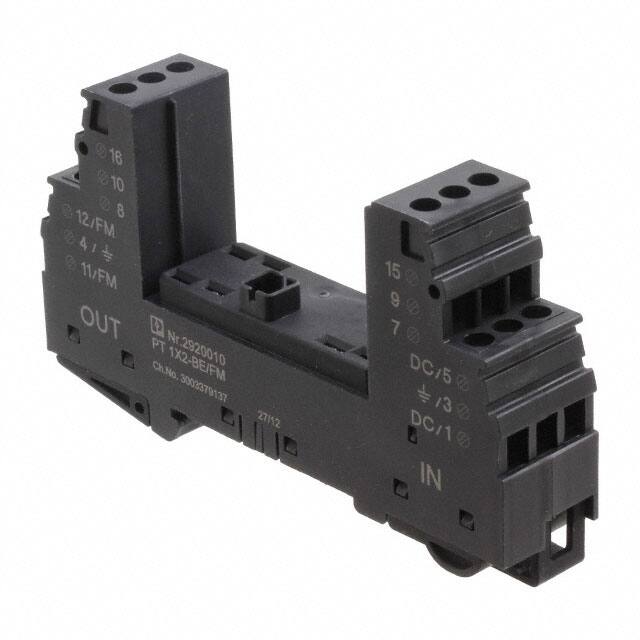

The Phoenix Contact 2920010 is a surge protection base element designed for use with surge protectors in the PT series. It facilitates the acceptance of a protective plug and includes diagnostic and status indicators for a floating double wire.
This base element is constructed for DIN rail mounting (35 mm) and features a two-section, divisible design for ease of maintenance. It has a width of 17.7 mm, a height of 89.8 mm, and a depth of 52 mm. The degree of protection is IP20.
Connection is made via screw terminals for both input and output, supporting conductor cross-sections from 0.2 mm² to 2.5 mm² for stranded wire and 0.2 mm² to 4 mm² for solid wire. The operating temperature range is from -40 °C to 85 °C, and it has an inflammability class of V0 according to UL 94.
Key technical data includes a direction of action for Shield-Earth Ground, M3 screw threads with a tightening torque of 0.8 Nm, and a stripping length of 8 mm. Classification codes include eCl@ss 27130803, ETIM EC000472, and UNSPSC 39121620.
The operating temperature range is -40 °C to 85 °C.
It is designed for 35 mm DIN rail mounting.
The inflammability class is V0 according to UL 94.
It uses screw terminal blocks for both input and output connections.
The degree of protection is IP20.
