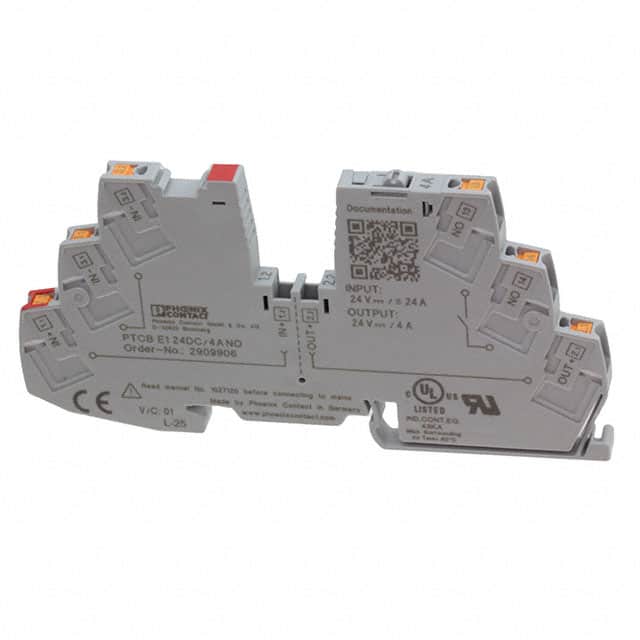

2909906 The Phoenix Contact 2909906 is a 4A, 24VDC electronic circuit breaker. It features a solid-state design and DIN rail mounting for space-saving installations.
Mfr Part #:

2909906

Mfr Name: Phoenix Contact
Phoenix Contact
The Phoenix Contact 2909906 is a 4A, 24VDC electronic circuit breaker. It features a solid-state design and DIN rail mounting for space-saving installations.
Stock on Request

2909906 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Breaker Type
Current Rating
Current Rating (Amps)
Illumination
Mounting Type
Number of Poles
Voltage Rating
View Similar Products (0)

2909906 Description

Short technical summary and product information.

The Phoenix Contact 2909906 is a narrow electronic circuit breaker designed for simple, space-saving potential distribution. With a width of only 6 mm, it offers a current rating of 4A and an operating voltage range of 18-30 VDC.



This solid-state circuit breaker is suitable for DIN rail mounting, making it easy to integrate into control cabinets. Its design allows for bridging with the CLIPLINE complete terminal block system, simplifying application setup. The PTCB series offers flexibility with adjustable current values, reducing inventory needs.



Key specifications include a 1-pole design and a lever actuator. The device is identified by part number 2909906 and manufacturer part number 277-17724-ND. It is designed for efficient circuit protection in various industrial applications.

2909906 Quick Information

Product Type: Electronic Circuit Breaker
Series: PTCB E1
Canonical Name: Phoenix Contact PTCB E1 24DC/4A NO Electronic Circuit Breaker
Subcategory: Electronic Circuit Breaker

2909906 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

2909906 Features

  • Narrow 6mm width for space saving.
  • 4A current rating at 24VDC.
  • Solid-state breaker type.
  • DIN rail mounting compatibility.
  • Bridging option with CLIPLINE system.

2909906 Applications

  • Ideal for potential distribution.
  • Suitable for control cabinet integration.
  • Flexible current adjustment.
  • Space-saving circuit protection.

2909906 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the 2909906?

18-30 VDC.

What mounting type does this circuit breaker use?

DIN Rail.

What is the nominal current rating?

4A.

What is the nominal voltage?

24 VDC.

What type of circuit breaker is this?

Solid state.

How many poles does it have?

1 pole.

What type of actuator does it have?

Lever actuator.
