| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating | |
| Width |

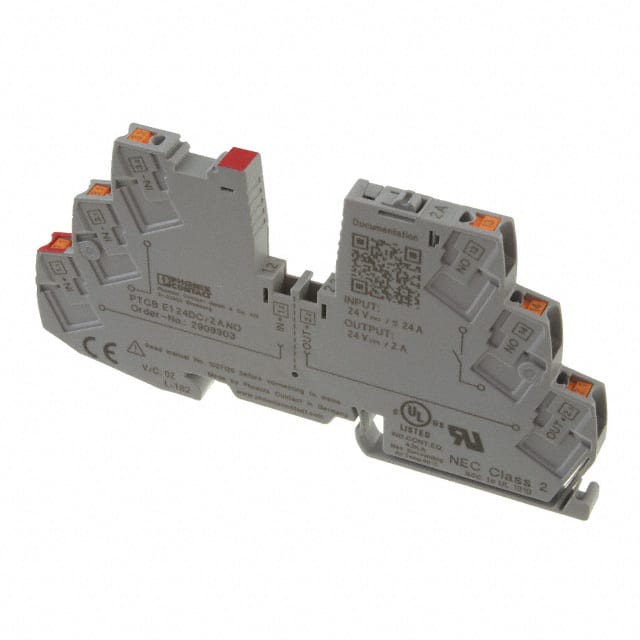

The Phoenix Contact 2909903 is a single-pole, solid-state electronic circuit breaker rated for 2A and 24VDC. It features a narrow 6mm width, making it ideal for space-saving potential distribution in control cabinets.
This circuit breaker is designed for easy integration with the CLIPLINE complete terminal block system, offering a bridging option for simple application setup. The adjustable current setting range from 1 to 8 amperes provides flexibility and reduces inventory needs.
Mounting is achieved via a standard DIN rail, and the actuator type is a lever. The breaker operates within a voltage range of 18-30 VDC.
Key specifications include a 2A current rating, 24VDC operating voltage, and a 6mm width. This device is suitable for applications requiring precise and reliable overcurrent protection in a compact form factor.
The current rating is 2A.
The operating voltage is 24 VDC.
It is mounted on a DIN Rail.
It is a Solid State breaker.
The width is 6 mm.
The adjustable current range is from 1 to 8 A.
