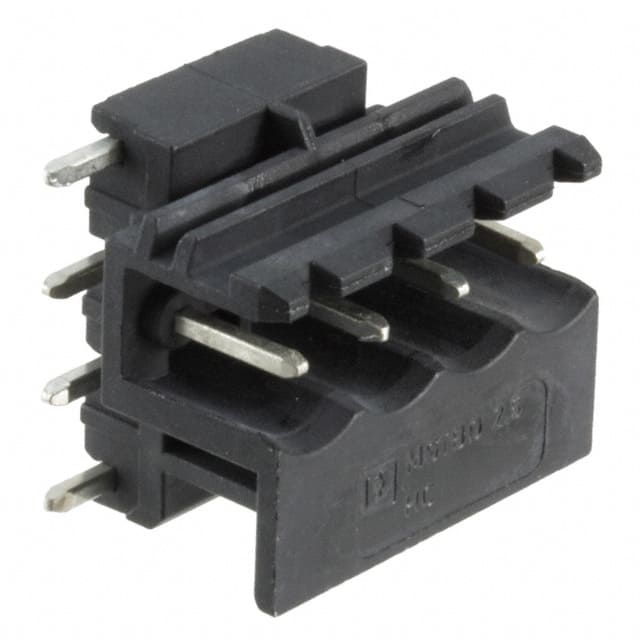

2909002 Phoenix Contact MSTBO 2.5/4-GIL BK header with 4 positions, 5.00mm pitch, through hole mounting, right angle orientation, rated 12A and 300V.
Mfr Part #:

2909002

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact MSTBO 2.5/4-GIL BK header with 4 positions, 5.00mm pitch, through hole mounting, right angle orientation, rated 12A and 300V.
✓ Total Stock: 1,400 pcs
$ Price Range: $5.23

2909002 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
1,400 pcs
On Request
1400 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2909002 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Halogen Free
Header Orientation
Hole Diameter
Industrial Grade
Insulation Material
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
SVHC Present
Tape & Reel
Termination Style
Type
Voltage
View Similar Products (0)

2909002 Description

Short technical summary and product information.

The Phoenix Contact 2909002 is a 4-position terminal block header from the MSTBO series. It features a 5.00mm pitch and a right-angle orientation for through-hole soldering. The header is rated for 12A nominal current (EN-VDE) and 300V (UL Use Group B/D).



Constructed with PBT insulating material rated UL 94 V-0, the header offers reliable performance in industrial control and power distribution applications. It supports wire gauges suitable for 12A loads and is approved under multiple standards including UL, CSA, and VDE.



The compact 15mm length and 1.4mm hole diameter simplify PCB layout. The black housing and 1x1mm pin dimensions ensure robust mechanical connection.

2909002 Quick Information

Product Type: Header
Series: MSTBO 2.5/4-GIL BK
Canonical Name: Phoenix Contact MSTBO 2.5/4-GIL BK Header, 4 Position, 5.00mm Pitch, Through Hole, Right Angle
Subcategory: Terminal Block Header

2909002 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

2909002 Estimated Pricing

Qty Low High
1+ $5.23 $5.23

Estimated market price range - modelled values for guidance only, not live distributor offers.

2909002 Features

  • 4 positions with 5.00mm pitch spacing.
  • Right-angle through-hole mounting design.
  • Rated 12A nominal current per EN-VDE.
  • Rated 300V for UL Use Group B/D.
  • PBT insulation with UL 94 V-0 rating.

2909002 Applications

  • Industrial control panel wiring applications.
  • Power distribution terminal block interfaces.
  • PCB-to-wire connections in automation systems.
  • Building automation and lighting control.

2909002 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the 2909002 header have?

It has 4 positions.

What is the pitch of this header?

The pitch is 5.00mm.

What is the current rating of the 2909002?

The nominal current rating is 12A per EN-VDE, with a maximum load current of 12A.

What is the voltage rating for this header?

Rated voltage is 300V for UL Use Group B/D, and 320V for insulation category III/2.

What mounting type does the 2909002 use?

It uses through-hole mounting with solder termination.
