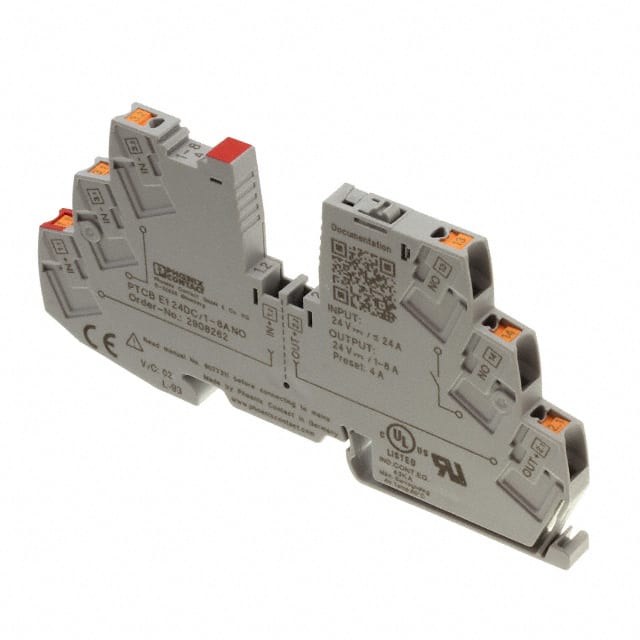

This Phoenix Contact electronic circuit breaker, part number 2908262, is designed for simple, space-saving potential distribution. It features an adjustable nominal current range from 1 to 8 amperes and operates at 18-30 VDC, with a typical rating of 24 VDC. Its exceptionally narrow overall width of just 6 mm allows for more space in control cabinets.
The PTCB E1 24DC/1-8A NO model is a solid-state, single-pole breaker with lever actuation, suitable for DIN rail mounting. Its design facilitates easy application setup through bridging options to the CLIPLINE complete terminal block system. This flexibility reduces inventory needs by allowing adjustable current values on a single device for various applications.
Key specifications include a maximum current rating of 8A and an operating voltage range of 18-30 VDC. The breaker type is solid state, and it features a lever actuator. It is designed for mounting on a DIN rail and has a width of 6 mm.
24 VDC nominal, with a range of 18-30 VDC.
Maximum 8A, adjustable from 1A to 8A.
Solid state.
1 pole.
DIN rail.
Lever.
6 mm.
