| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,459 pcs
|
7459 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6,821 pcs
|
6821 pcs | On Request | 1 | On Request | On Request | 16+/15+ | On Request | On Request | |
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
82 pcs
|
82 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Type | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Cover Material | |
| Current Rating | |
| Features | |
| Flammability Rating | |
| Height Above Board | |
| Insertion, Removal Method | |
| Insulation Material | |
| Insulation Resistance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Range | |
| Process Rating (Max Temperature) | |
| Storage Temperature | |
| Storage Temperature Range | |
| Tape & Reel | |
| Withstanding Voltage |

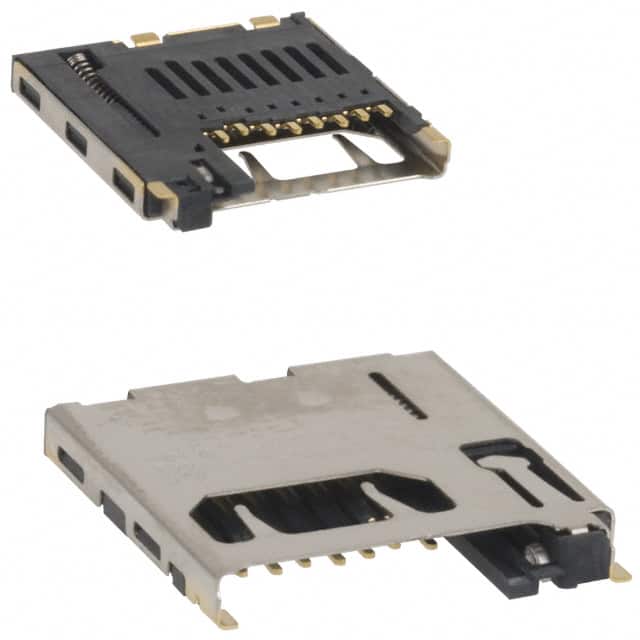

The 3M 2908-05WB-MG is a microSD card connector from the 2900 Series, designed for push-push (push in, push out) insertion and removal. It features a right-angle surface-mount configuration with a low 1.85 mm profile above the board.
The connector includes a card detection switch and is built with a high-temperature thermoplastic insulator rated UL 94V-0, copper alloy contacts with gold plating (15 μ″ min at wiping area), and a stainless steel cover. It is rated for 0.5 A current, 100 MΩ minimum insulation resistance, and withstands 500 V AC for one minute.
Operating temperature range is -25°C to +85°C, with storage from -40°C to +85°C. The part is compatible with reflow soldering processes up to 250°C (max 40 seconds above 230°C). The connector accepts standard microSD cards and includes a card polarization feature.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.76 | $4.76 |
| 10+ | $4.05 | $4.05 |
| 25+ | $3.80 | $3.80 |
| 50+ | $3.62 | $3.62 |
| 100+ | $3.44 | $3.44 |
| 250+ | $3.23 | $3.23 |
| 500+ | $3.12 | $3.12 |
| 1,000+ | $2.78 | $2.78 |
| 3,000+ | $2.70 | $2.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector is rated for 0.5 A nominal.
The operating temperature range is -25°C to +85°C.
Surface Mount, Right Angle.
Yes, it includes a Switch feature for card detection.
High Temperature Thermoplastic with UL 94V-0 flammability rating.
