| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
127 pcs
|
127 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Max) | |
| DC Resistance (DCR) (Max) | |
| Impedance @ Frequency | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Lines | |
| Tape & Reel |

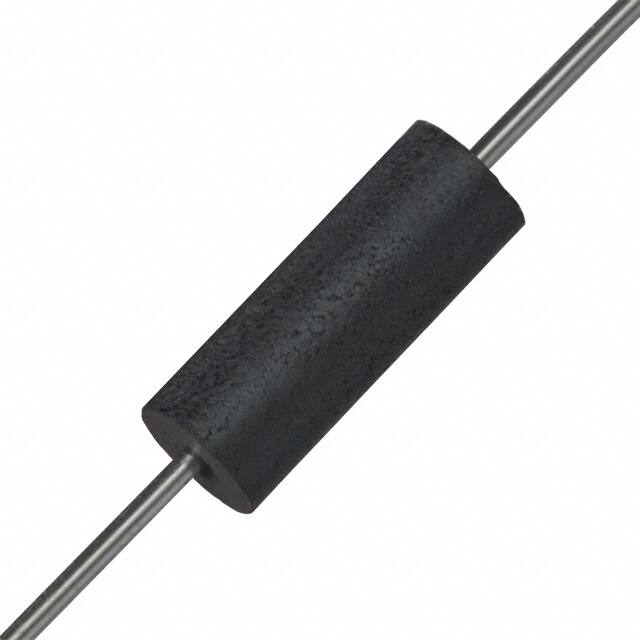

The 28L0138-50R-10 is a through-hole ferrite bead manufactured by Laird Technologies, designed for single-line EMI suppression. It provides an impedance of 153 Ohms when measured at 100 MHz, making it suitable for filtering high-frequency noise on power or signal lines.
This component is rated for a maximum continuous current of 5 Amperes and features a low maximum DC resistance of 10 milliohms, minimizing power loss and heat generation in the circuit. The ferrite bead is housed in an axial leaded package with dimensions of 0.138 inches in diameter and 0.375 inches in length (3.51 mm x 9.52 mm).
The through-hole mounting style allows for robust mechanical attachment and is well-suited for prototyping, breadboarding, or applications where surface mount assembly is not preferred. As a single-line device, it is intended for use on one conductor per component.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.26 | $0.26 |
| 10+ | $0.18 | $0.18 |
| 25+ | $0.16 | $0.16 |
| 50+ | $0.14 | $0.14 |
| 100+ | $0.13 | $0.13 |
| 250+ | $0.11 | $0.11 |
| 500+ | $0.09 | $0.09 |
| 1,000+ | $0.08 | $0.08 |
| 4,500+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance is 153 Ohms at 100 MHz.
The maximum current rating is 5 Amperes.
The maximum DC resistance is 10 milliohms.
It is a through-hole component in an axial package.
The RoHS status is listed as RoHS3 Compliant, but this data is unverified.
