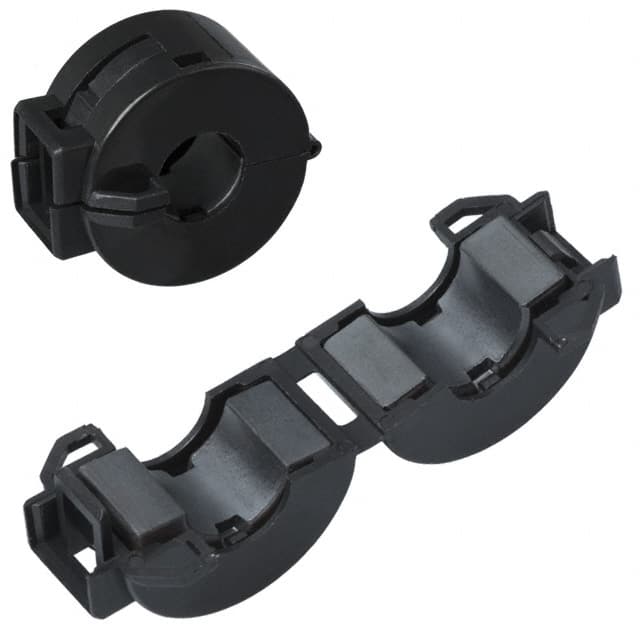

28A3039-0A2 Round hinged (snap on) cable ferrite core from Laird Technologies. Impedance of 130 Ohm at 100MHz with free hanging mounting.
Mfr Part #:

28A3039-0A2

Available from 1 distributors
Mfr Name: Laird Technologies
Laird Technologies
Round hinged (snap on) cable ferrite core from Laird Technologies. Impedance of 130 Ohm at 100MHz with free hanging mounting.
✓ Total Stock: 7,175 pcs
$ Price Range: $1.56 - $3.57

28A3039-0A2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
7,175 pcs
On Request
7175 pcs On Request 1 On Request On Request 23+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

28A3039-0A2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Design
Impedance @ Frequency
Inner Dimension
Length
Material
Medical Grade
Military Grade
Mounting Type
Outer Dimension
Tape & Reel
Type
View Similar Products (0)

28A3039-0A2 Description

Short technical summary and product information.

The 28A3039-0A2 is a round hinged (snap on) cable ferrite core manufactured by Laird Technologies. It provides an impedance of 130 Ohm at 100MHz, making it suitable for EMI suppression on cables.



The ferrite core has an outer dimension of 28.50mm x 24.55mm (1.122" W x 0.967" H) and an inner diameter of 10.23mm (0.403"). The overall length is 19.90mm (0.783"). It features a free hanging mounting type with a hinged snap-on design for easy installation without the need to disconnect cables.

28A3039-0A2 Quick Information

Product Type: Cable Ferrite Core
Series: 28A
Canonical Name: 28A3039-0A2 Round Hinged Cable Ferrite Core, 130 Ohm @ 100MHz
Subcategory: Round Hinged Cable Ferrite

28A3039-0A2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

28A3039-0A2 Estimated Pricing

Qty Low High
1+ $3.57 $3.57
10+ $2.45 $2.45
25+ $2.08 $2.08
50+ $1.82 $1.82
100+ $1.58 $1.58
250+ $1.56 $1.56

Estimated market price range - modelled values for guidance only, not live distributor offers.

28A3039-0A2 Features

  • Round hinged snap-on design for easy installation.
  • 130 Ohm impedance at 100MHz for EMI suppression.
  • Free hanging mounting type for cable applications.
  • Inner diameter of 10.23mm for cable passage.
  • RoHS3 compliant and REACH unaffected.

28A3039-0A2 Applications

  • EMI suppression on round cables and wire bundles.
  • Noise filtering in power and signal lines.
  • Snap-on installation without cable disconnection.
  • Suitable for industrial and commercial electronic equipment.

28A3039-0A2 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the impedance of the 28A3039-0A2 ferrite core?

The impedance is 130 Ohm at 100MHz.

What is the inner diameter of this ferrite core?

The inner diameter is 10.23mm (0.403 inches).

What is the mounting type for the 28A3039-0A2?

The mounting type is free hanging.

Is the 28A3039-0A2 RoHS compliant?

Yes, it is listed as RoHS3 Compliant.

What is the outer dimension of this ferrite core?

The outer dimension is 28.50mm x 24.55mm (1.122" W x 0.967" H).
