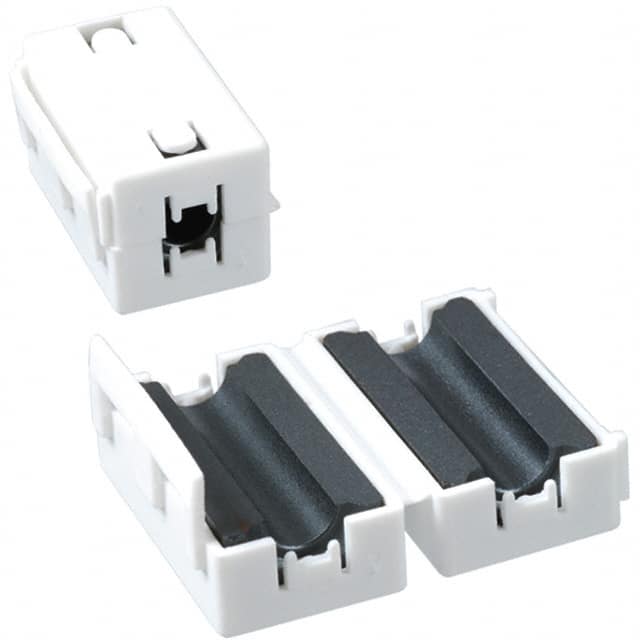

The 28A2025-0A0 is a hinged snap-on ferrite core from Laird Technologies designed for EMI suppression on round cables. It provides a nominal impedance of 320 Ohms at 100MHz, making it suitable for filtering high-frequency noise.
The core measures 32.50mm in length with an outer dimension of 18.15mm x 18.90mm and an inner dimension of 7.05mm x 3.40mm, accommodating cables up to approximately 7mm width. The free hanging mounting allows easy installation without additional hardware.
Constructed from ferrite material 28, this component is RoHS3 compliant and has an MSL of 1 (unlimited). It is designed for snap-on attachment, enabling quick retrofitting on existing cables.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.76 | $1.76 |
| 10+ | $1.29 | $1.29 |
| 25+ | $1.05 | $1.05 |
| 50+ | $0.99 | $0.99 |
| 100+ | $0.89 | $0.89 |
| 240+ | $0.83 | $0.83 |
| 480+ | $0.81 | $0.81 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
320 Ohm at 100MHz.
Outer dimension: 18.15mm x 18.90mm; inner dimension: 7.05mm x 3.40mm; length: 32.50mm.
Hinged (snap-on) design, round type, free hanging mounting.
Material 28 (ferrite).
RoHS3 compliant (unverified).
MSL 1 (unlimited).
REACH unaffected (unverified).
