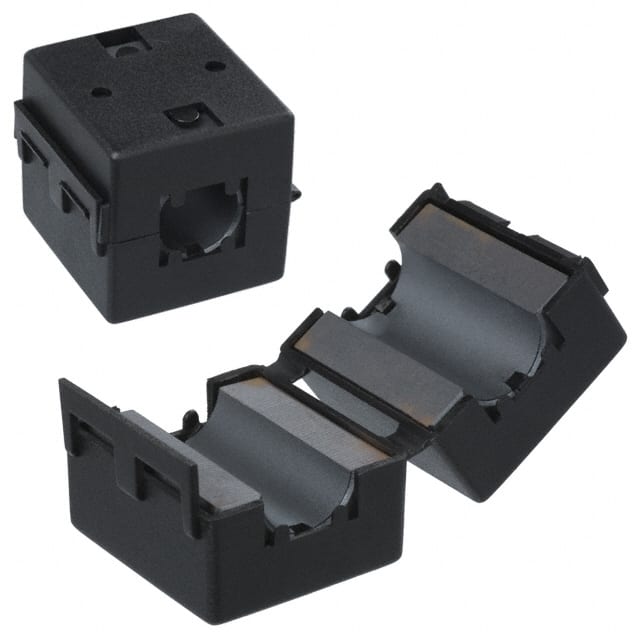

28A2024-0A2 Round hinged snap-on ferrite core from Laird Technologies with 280 Ohm impedance at 100MHz. Free hanging mounting with 13mm inner diameter.
Mfr Part #:

28A2024-0A2

Available from 1 distributors
Mfr Name: Laird Technologies
Laird Technologies
Round hinged snap-on ferrite core from Laird Technologies with 280 Ohm impedance at 100MHz. Free hanging mounting with 13mm inner diameter.
✓ Total Stock: 162 pcs
$ Price Range: $2.50 - $5.30

28A2024-0A2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
162 pcs
On Request
162 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

28A2024-0A2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Design
Impedance @ Frequency
Inner Dimension
Length
Material
Medical Grade
Military Grade
Mounting Type
Outer Dimension
Tape & Reel
Type
View Similar Products (0)

28A2024-0A2 Description

Short technical summary and product information.

The 28A2024-0A2 is a round hinged snap-on ferrite core manufactured by Laird Technologies. It provides 280 Ohm impedance at 100MHz, making it suitable for EMI suppression on cables and wire bundles.



The core has an inner diameter of 13.00mm and outer dimensions of 29.00mm x 29.62mm, with a length of 32.50mm. The hinged snap-on design allows easy installation without disconnecting the cable. It is designed for free hanging mounting and uses Material 28.

28A2024-0A2 Quick Information

Product Type: Cable Ferrite Core
Series: 28A
Canonical Name: 28A2024-0A2 Round Hinged Snap-On Ferrite Core, 280 Ohm @ 100MHz
Subcategory: Round Hinged Snap-On

28A2024-0A2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

28A2024-0A2 Estimated Pricing

Qty Low High
1+ $5.30 $5.30
10+ $3.62 $3.62
25+ $3.06 $3.06
50+ $2.68 $2.68
108+ $2.50 $2.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

28A2024-0A2 Features

  • 280 Ohm impedance at 100MHz.
  • Round hinged snap-on design.
  • 13mm inner diameter for cable fit.
  • Free hanging mounting style.
  • RoHS3 compliant.

28A2024-0A2 Applications

  • EMI suppression on round cables.
  • Noise filtering in power lines.
  • Signal integrity improvement on data cables.

28A2024-0A2 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the impedance of the 28A2024-0A2 ferrite core?

280 Ohm at 100MHz.

What is the inner diameter of this ferrite core?

13.00mm (0.512 inches).

What is the mounting type for the 28A2024-0A2?

Free hanging.

Is the 28A2024-0A2 RoHS compliant?

RoHS3 Compliant (unverified).
