| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Air Pressure (Operation) | |
| Air Pressure (Storage/Transport) | |
| Degree of Protection | |
| Depth | |
| Fieldbus System | |
| For Use With | |
| Height | |
| Mounting Type | |
| Number of Inputs and Type | |
| Number of Outputs and Type | |
| Operating Temperature | |
| Permissible Humidity (Operation) | |
| Permissible Humidity (Storage/Transport) | |
| Storage Temperature | |
| Supply Voltage | |
| Termination Style | |
| Transmission Speed | |
| Type | |
| Voltage | |
| Weight | |
| Width |

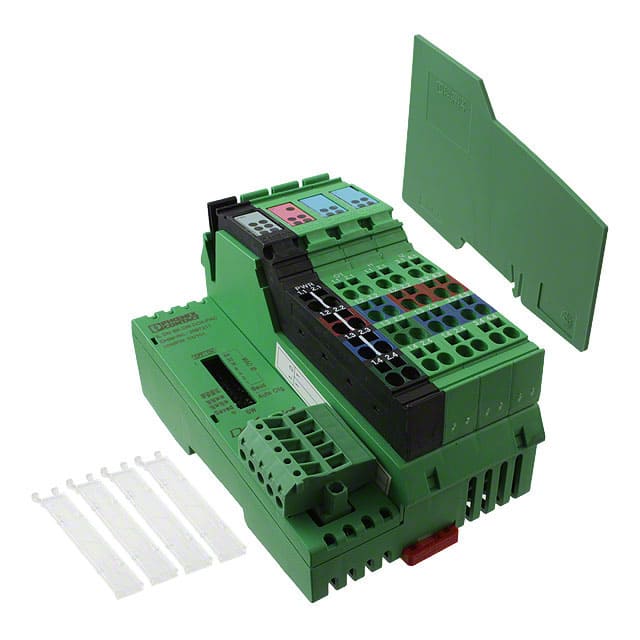

The Phoenix Contact 2897211 is a DeviceNet bus coupler module designed for industrial automation systems. It features 8 digital inputs and 4 solid state outputs, operating at 24 V DC. The module supports the DeviceNet fieldbus protocol with selectable transmission speeds of 125, 250, or 500 kBaud. It is part of the Inline series and includes all necessary connectors for supply and I/O connections.
The module is DIN rail mountable with dimensions of 80 mm width, 119.8 mm height, and 71.5 mm depth, weighing 320 g. It has an IP20 protection rating and operates in ambient temperatures from -25°C to 55°C. The storage temperature range is -45°C to 85°C. The module is RoHS compliant as of 2008.
For project planning, the corresponding EDS (device master data) file is available for download from the manufacturer. The module supports screw and spring terminal connections.
24 V DC.
-25°C to 55°C.
DIN rail.
Yes, according to the datasheet it is RoHS-compliant since 05/06/2008, but the status is unverified.
8 digital inputs and 4 solid state outputs.
DeviceNet.
80 mm width, 119.8 mm height, 71.5 mm depth.
