| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
430 pcs
|
430 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Attachment Method | |
| Fin Height | |
| Lead Style | |
| Length | |
| Material | |
| Material Finish | |
| Package Cooled | |
| Power Dissipation @ Temperature Rise | |
| Shape | |
| Thermal Resistance @ Forced Air Flow | |
| Thermal Resistance @ Natural | |
| Type | |
| Width |

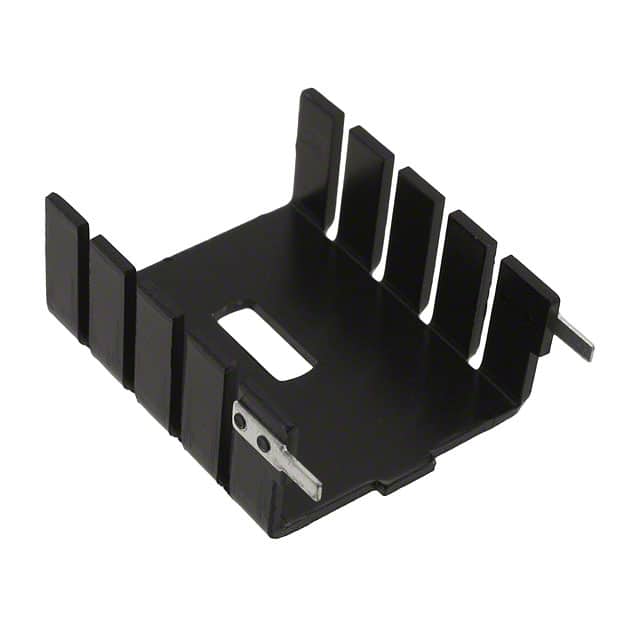

The Wakefield-Vette 287-1AB is a board level heat sink designed for cooling TO-220 semiconductor packages. Constructed from black anodized aluminum, it features a rectangular finned shape with a vertical orientation. The heat sink measures 29.97mm in length, 25.40mm in width, and has a fin height of 12.70mm. It offers a typical thermal resistance of 16.20°C/W under natural convection and 7.80°C/W at 200 LFM forced air flow. Power dissipation is rated at 4.0W for a 65°C temperature rise. Attachment is achieved via bolt-on and PC pin methods, allowing for secure mounting and wave soldering directly to the circuit board. This heat sink is suitable for space-constrained applications requiring efficient heat removal from TO-220 devices.
16.20°C/W under natural convection and 7.80°C/W at 200 LFM forced air flow.
TO-220 packages.
Aluminum with a black anodized finish.
Length 29.97mm, width 25.40mm, fin height 12.70mm.
Bolt-on and PC pin attachment.
4.0W at a 65°C temperature rise.
