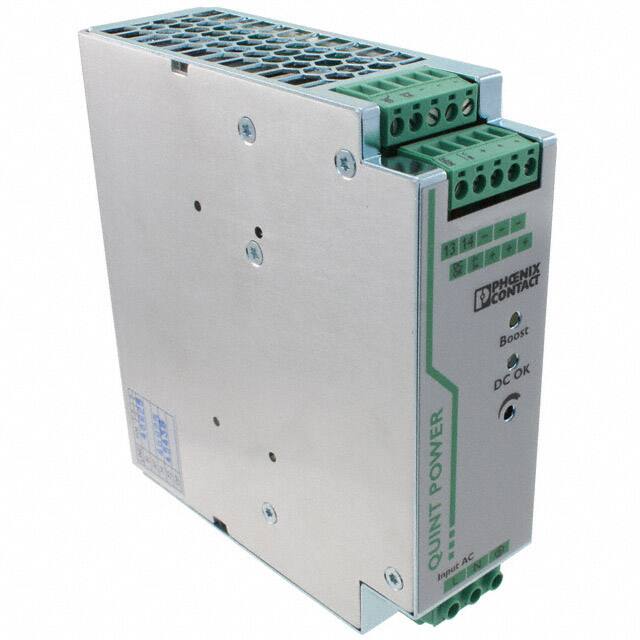

The Phoenix Contact QUINT-PS/1AC/24DC/5 (part number 2866750) is a primary-switched industrial power supply designed for DIN rail mounting. It delivers a nominal output of 24 V DC at 5 A, providing 120 W of continuous power. The unit accepts a universal AC input ranging from 85 to 264 V AC (45-65 Hz) or 90 to 350 V DC, making it suitable for global applications.
Key electrical specifications include a typical efficiency of 90%, adjustable output voltage, load sharing capability, and SFB (Selective Fuse Breaking) technology that delivers up to six times the nominal current for 12 ms to reliably trip standard circuit breakers. The power supply also features a power failure bypass time greater than 30 ms at both 120 V AC and 230 V AC.
Mechanically, the unit measures 125 mm (length) x 40 mm (width) x 130 mm (height) and weighs 1020 g. It is rated IP20 for indoor use and operates over a temperature range of -25°C to 70°C with derating. The housing is designed for DIN rail mounting and includes a mounted universal DIN rail adapter UTA 107/30. The device is intended for ITE (commercial) applications and carries approvals from CB, cULus, and cURus.
| Qty | Low | High |
|---|---|---|
| 1+ | $364.91 | $364.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 24 V DC and the output current is 5 A, providing 120 W of power.
The operating temperature range is -25°C to 70°C with derating.
It is listed as RoHS3 compliant, but this status is unverified and should be confirmed with the manufacturer.
The AC input voltage range is 85 V to 264 V AC (45-65 Hz), and the DC input range is 90 V to 350 V DC.
The typical efficiency is 90%.
It is designed for DIN rail mounting.
The dimensions are 125 mm (length) x 40 mm (width) x 130 mm (height).
