| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Height | |
| Width |

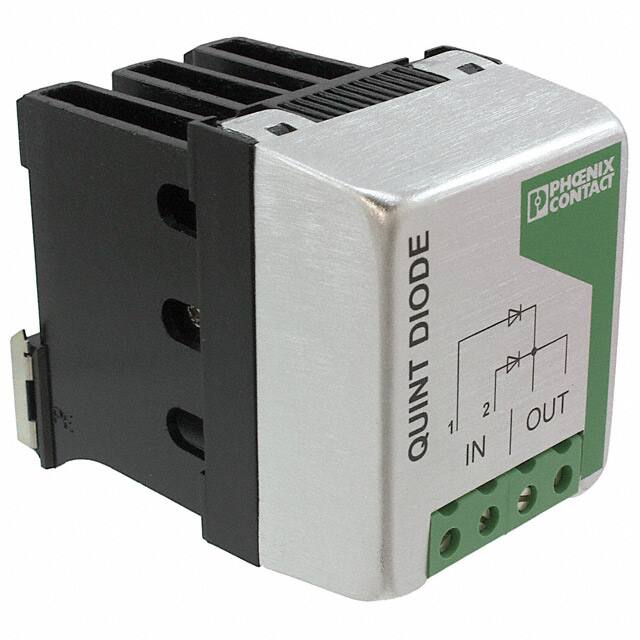

The Phoenix Contact 2866585 is a redundancy module with a nominal input voltage of 48V DC and a maximum input voltage of 60V DC. It supports various maximum current ratings depending on wire gauge and temperature, ranging from 14A to 60A.
This module is designed for applications requiring increased reliability and uptime. It can be used in potentially explosive areas, meeting Class I, Div. 2, Groups A, B, C, D; T4 specifications for certain current ratings.
Key electrical specifications include a nominal input current of 2x 20A or 1x 40A. The power loss at nominal load is a maximum of 28W. The module has a width of 62mm and a height of 84mm.
It is RoHS3 compliant, has an MSL of 1 (Unlimited), and is REACH Unaffected. This redundancy module is an essential component for ensuring continuous power supply in critical systems.
The nominal input voltage is 48 V DC.
The maximum input voltage is less than 60 V DC.
The nominal input current is 2x 20 A or 1x 40 A.
The maximum power loss at nominal load is 28 W.
The module has a width of 62 mm and a height of 84 mm.
Yes, certain configurations are rated for potentially explosive areas: Class I, Div. 2, Groups A, B, C, D; T4.
