| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Board Mount | |
| Circuit Application | |
| Color | |
| Connector System | |
| Contact Base Material | |
| Contact Current Rating (Max) | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Halogen Free | |
| Header Orientation | |
| Header Type | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Retention Type | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Operating Voltage | |
| Packaging Quantity | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Solder Process Capability | |
| Stacked Levels | |
| Standard Package Qty | |
| Tape & Reel | |
| Terminal Block Connector Type | |
| Termination Post & Tail Length | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire size |

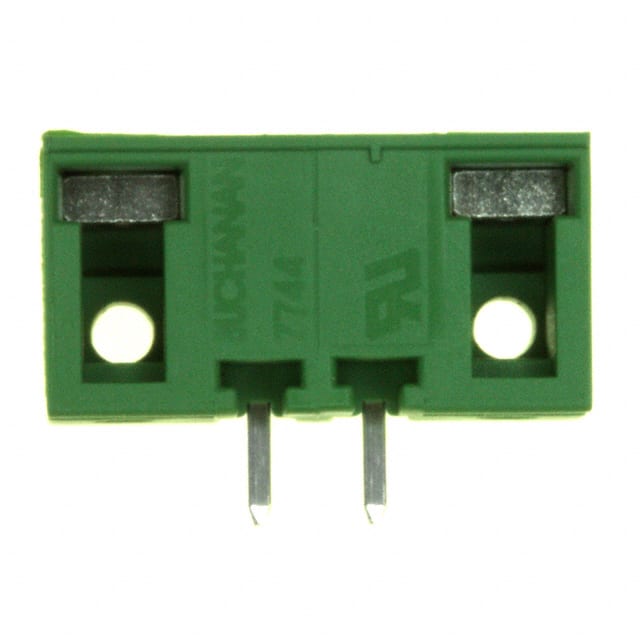

The TE Connectivity 284519-2 is a 2-position, single-row, fully shrouded PCB terminal block header designed for wire-to-board connections. It features a 3.81 mm (0.150 in) centerline pitch and a vertical orientation. The header is mounted via through-hole solder termination and has a tin-plated phosphor bronze contact mating surface. Additional features include a mating flange for secure latching and a threaded mounting retention type.
The housing is made of green PA 66 material and is rated for operating temperatures from -40 to 105 °C. Electrical ratings include a maximum operating voltage of 300 VAC and a maximum current rating of 11 A. The header is suitable for power and signal applications. It accepts wire sizes from 0.05 to 2 mm² (30-14 AWG).
This component is compliant with EU RoHS Directive 2011/65/EU with exemptions and contains lead (Pb 0.59%) as a candidate SVHC above threshold. It is halogen-free with low halogen content (<900 ppm). The package quantity is 300 pieces per standard packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.93 | $2.93 |
| 10+ | $2.09 | $2.09 |
| 25+ | $1.41 | $1.41 |
| 50+ | $1.34 | $1.34 |
| 100+ | $1.31 | $1.31 |
| 300+ | $1.16 | $1.16 |
| 600+ | $1.14 | $1.14 |
| 6,000+ | $1.10 | $1.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 284519-2 is a 2-position header.
The pitch (centerline) is 3.81 mm (0.150 in).
The maximum contact current rating is 11 A, and the maximum operating voltage is 300 VAC.
It uses Through Hole mounting with solder termination.
The operating temperature range is -40 to 105 °C.
Yes, it is EU RoHS compliant with exemptions.
