| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,040 pcs
|
1040 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Header Orientation | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage |

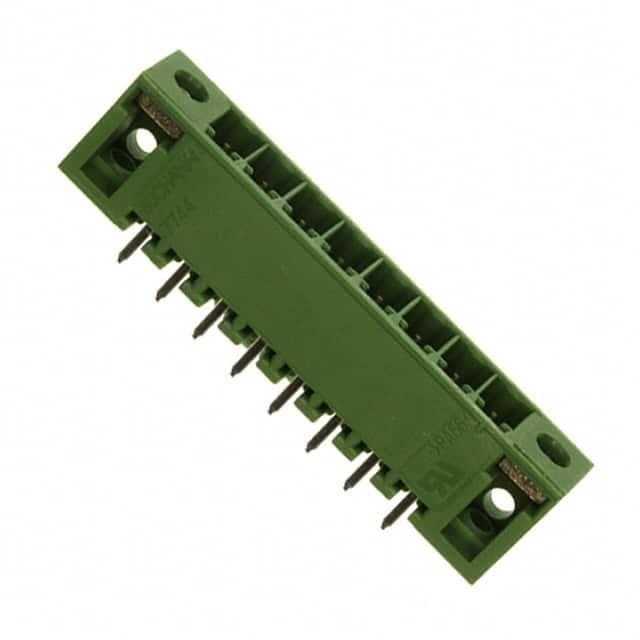

The 284516-8 is a terminal block header manufactured by TE Connectivity. It features 8 positions arranged in a single level with 8 positions per level, on a 3.50mm (0.138 inch) pitch. The header is shrouded on 4 sides and has a vertical orientation, making it suitable for wire-to-board connections in a variety of industrial and commercial applications.
This component uses through hole mounting with solder termination. The contact mating finish is tin, and the housing is green. It includes a mating flange for secure connection. Electrical ratings include a current rating of 11A and a voltage rating of 300V. The operating temperature range is -40°C to 110°C.
The header is designed for use with compatible terminal block plugs. It is RoHS3 compliant and has an MSL of 1 (unlimited). The part is commonly used in power supplies, control systems, and industrial automation equipment where reliable and compact wire-to-board connections are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.45 | $4.45 |
| 10+ | $3.29 | $3.29 |
| 20+ | $2.87 | $2.87 |
| 50+ | $2.61 | $2.61 |
| 100+ | $2.39 | $2.39 |
| 200+ | $1.99 | $1.99 |
| 800+ | $1.97 | $1.97 |
| 2,400+ | $1.87 | $1.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 284516-8 has 8 positions in a single level.
The pitch is 3.50mm (0.138 inches).
The current rating is 11A.
The voltage rating is 300V.
The mounting type is through hole with solder termination.
The operating temperature range is -40°C to 110°C.
The part is listed as RoHS3 compliant, though this is unverified.
