| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Header Orientation | |
| Lead Spacing | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage |

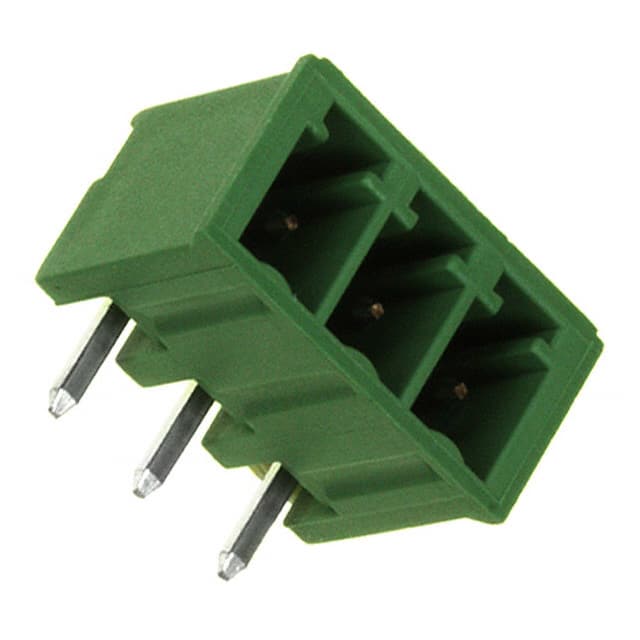

The TE Connectivity 284513-3 is a shrouded header designed for use in terminal block interconnect systems. It features 3 positions arranged in a single level with a 3.81mm pitch, making it suitable for compact PCB layouts where space is at a premium.
The header is oriented at a 90-degree right angle and uses through hole solder termination for reliable mechanical and electrical connections. The contact mating surface is finished with tin, and the housing is green in color.
Electrically, the header is rated for 11 A of current and 300 V, with an operating temperature range of -40°C to 110°C. These ratings make it appropriate for industrial control, power distribution, and general-purpose signal interconnection applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.59 | $2.59 |
| 10+ | $1.86 | $1.86 |
| 25+ | $1.62 | $1.62 |
| 50+ | $1.47 | $1.47 |
| 100+ | $1.24 | $1.24 |
| 200+ | $1.15 | $1.15 |
| 600+ | $1.11 | $1.11 |
| 1,000+ | $1.06 | $1.06 |
| 4,800+ | $0.97 | $0.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 284513-3 has 3 positions arranged in a single level.
The pitch is 3.81mm (0.150 inches).
The header is rated for 11 A and 300 V.
The header uses through hole mounting with solder termination.
The operating temperature range is -40°C to 110°C.
