| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Header Orientation | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage |

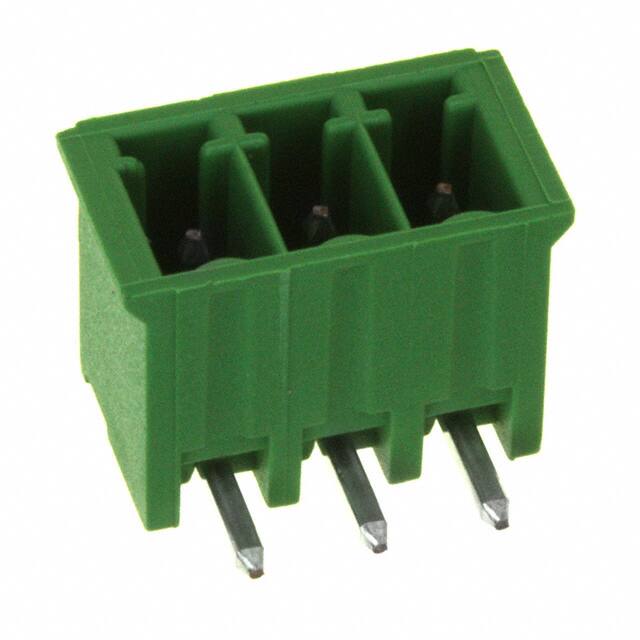

The TE Connectivity 284512-3 is a 3-position shrouded male pin header designed for terminal block applications. It features a 3.50mm pitch and a 90° right angle orientation, making it suitable for compact PCB layouts where space is at a premium.
This header supports a current rating of 11 A and a voltage rating of 300 V, with an operating temperature range from -40°C to 110°C. The contact mating finish is tin, and the housing is green.
With through hole mounting and solder termination, this component provides reliable mechanical and electrical connections in industrial control, automation, and power distribution systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
| 10+ | $0.78 | $0.78 |
| 25+ | $0.71 | $0.71 |
| 50+ | $0.66 | $0.66 |
| 100+ | $0.63 | $0.63 |
| 200+ | $0.54 | $0.54 |
| 600+ | $0.53 | $0.53 |
| 800+ | $0.49 | $0.49 |
| 5,600+ | $0.49 | $0.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 284512-3 has 3 positions in a single level.
The pitch is 3.50mm.
The current rating is 11 A.
The voltage rating is 300 V.
The mounting type is through hole with solder termination.
The operating temperature range is -40°C to 110°C.
