| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Color | |
| Contact Mating Finish | |
| Current | |
| EU ELV | |
| Features | |
| Halogen Free | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

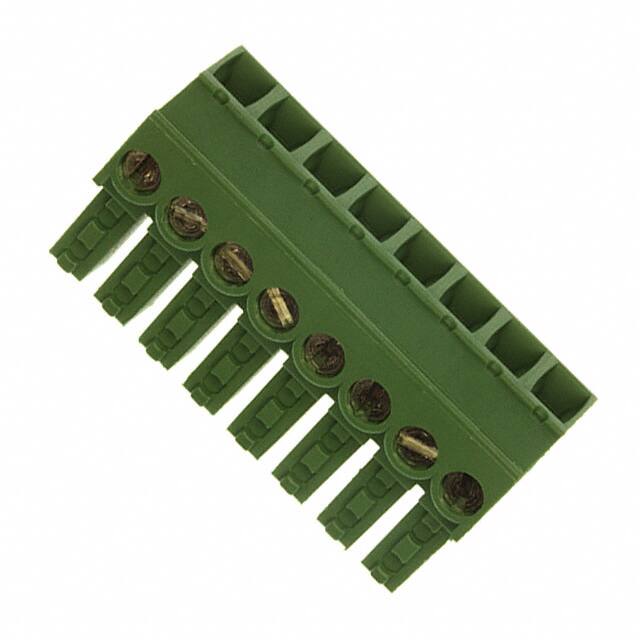

The TE Connectivity 284507-8 is a Termi-Blok series terminal block plug designed for reliable wire-to-board connections. It features 8 positions arranged in a single level with a 3.81mm (0.150 inch) pitch, accepting wire sizes from 0.05 mm² to 2 mm². The plug utilizes a screw-rising cage clamp termination for secure and vibration-resistant wire retention.
This plug is rated for 11A current and 300V voltage, suitable for a range of industrial and commercial applications. It supports side stacking to increase the number of positions, and is designed for free hanging (in-line) mounting with 180-degree wire entry. The housing is green in color with tin-plated contact mating surfaces.
Environmental compliance includes RoHS with exemptions (6c - Pb-Alloy in Copper), REACH SVHC declaration (lead content 1.98%), and low halogen content (Br, Cl, F, I < 900 ppm). The component carries EU ELV exemption for lead in copper alloy and is not fully compliant with China RoHS due to lead content above threshold.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.10 | $11.10 |
| 10+ | $8.83 | $8.83 |
| 20+ | $6.64 | $6.64 |
| 50+ | $6.05 | $6.05 |
| 100+ | $5.69 | $5.69 |
| 200+ | $5.54 | $5.54 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 284507-8 terminal block plug has 8 positions arranged in a single level.
The pitch is 3.81mm (0.150 inches).
The part is rated for 11A current and 300V voltage.
It is designed for free hanging (in-line) mounting with 180-degree wire entry.
