| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Current Rating | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge or Range |

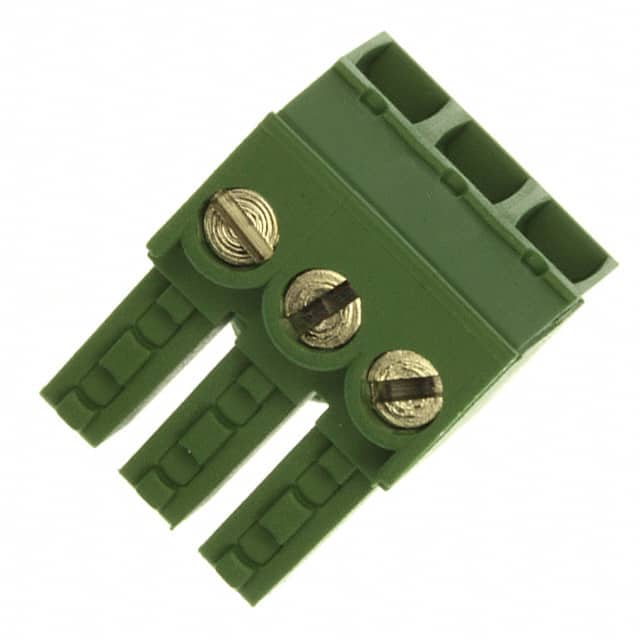

The TE Connectivity 284507-3 is a 3-position terminal block plug from the 284507 series, designed for 3.81mm pitch applications. It features female socket contacts with tin plating and a green PA 6.6 housing rated UL 94-V0. The plug accepts 14-30 AWG wire and supports side stacking for multi-position configurations without losing centerline spacing.
Rated at 11A and 300V, this plug is suitable for signal and low-power connections in industrial control, instrumentation, and building automation systems. Its screw rising cage clamp termination ensures reliable, vibration-resistant wire retention, and the free hanging (in-line) design allows flexible placement without additional mounting hardware.
The operating temperature range spans -40°C to 110°C, making it appropriate for both indoor and outdoor applications. The contact spring is made of phosphor bronze with tin plating, and the clamping screw is M2 brass with nickel plating, all contributing to robust electrical and mechanical performance.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.50 | $2.50 |
| 10+ | $1.90 | $1.90 |
| 25+ | $1.68 | $1.68 |
| 50+ | $1.57 | $1.57 |
| 100+ | $1.47 | $1.47 |
| 200+ | $1.23 | $1.23 |
| 600+ | $1.19 | $1.19 |
| 1,000+ | $1.06 | $1.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3.81mm
3
11A
300V
Free Hanging (In-Line)
14-30 AWG
Screw - Rising Cage Clamp
