| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
223 pcs
|
223 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Clamp Material | |
| Clamping Screw | |
| Color | |
| Contact Mating Finish | |
| Contact Spring Material | |
| Current | |
| Features | |
| Housing Flammability | |
| Housing Material | |
| Industrial Grade | |
| Lead Spacing | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| SVHC Present | |
| Stacking | |
| Terminal Material | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range | |
| Wire Size Range |

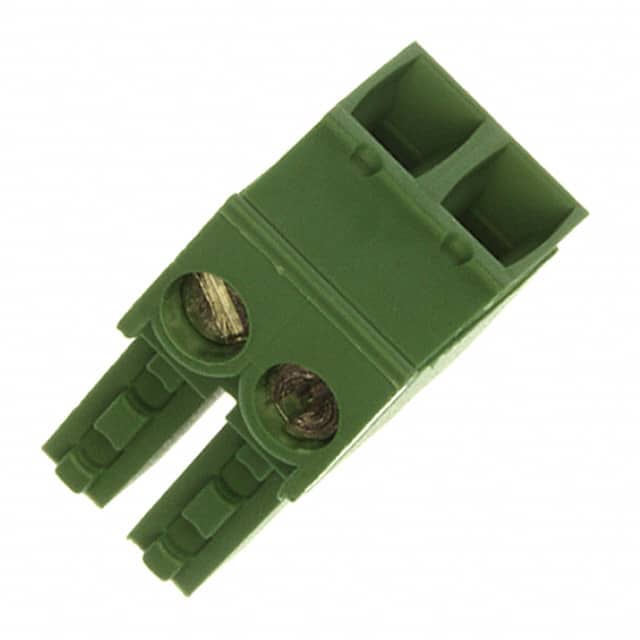

The TE Connectivity 284507-2 is a 2 position terminal block plug designed for reliable wire-to-board connections. It features a 3.81mm pitch and a free hanging (in-line) mounting style, ideal for applications where a compact and secure plug is needed. The screw rising cage clamp termination ensures a robust and vibration-resistant connection for wire sizes ranging from 14-30 AWG or 0.05-2mm².
This plug is rated for 11A at 300V and operates over a wide temperature range from -40°C to 110°C. The housing is made of PA 6.6 with UL 94-V0 flammability rating, colored green. The clamp, terminal, and contact spring are brass with nickel or tin plating, providing good conductivity and corrosion resistance. End-to-end side stacking allows multiple plugs to be ganged without losing centerline spacing.
Designed for industrial control systems, building automation, and power distribution, the 284507-2 offers a durable and reliable interface. The 180° wire entry simplifies wiring in tight spaces.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.93 | $1.93 |
| 10+ | $1.55 | $1.55 |
| 25+ | $1.45 | $1.45 |
| 50+ | $1.33 | $1.33 |
| 100+ | $1.24 | $1.24 |
| 300+ | $1.16 | $1.16 |
| 1,200+ | $1.10 | $1.10 |
| 4,800+ | $1.01 | $1.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 3.81mm.
It has 2 positions.
The current rating is 11 A.
The voltage rating is 300 V.
It uses free hanging (in-line) mounting.
It accepts 14-30 AWG wire.
