| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27,000 pcs
|
27000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Mounting Type | |
| Operating Temperature | |
| Packaging Method | |
| Style | |
| Tape & Reel | |
| Termination | |
| Wire Gauge |

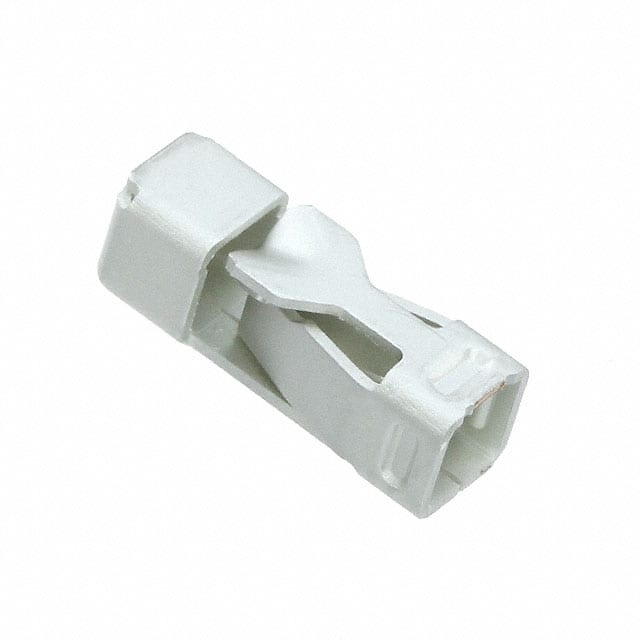

The TE Connectivity 2834167-3 is a surface mount, right angle releasable slim contact designed for board-to-cable/wire connections in solid state lighting applications. It accepts 18 AWG, 20 AWG, and 22 AWG solid and stranded wire, with a maximum insulation diameter of 2.05 mm and a strip length of 6.6 ± 0.3 mm. The contact is made of copper alloy with a tin finish over nickel underplate, ensuring reliable electrical performance. It is packaged in tape and reel for automated assembly and is RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 2,700+ | $0.12 | $0.12 |
| 5,400+ | $0.12 | $0.12 |
| 10,800+ | $0.11 | $0.11 |
| 24,300+ | $0.10 | $0.10 |
| 48,600+ | $0.10 | $0.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It accepts 18 AWG, 20 AWG, and 22 AWG solid and stranded wire (tin-dipped for stranded).
Surface mount, right angle.
-40°C to 105°C.
Tin over nickel underplate.
Yes, it is RoHS compliant per Directive 2002/95/EC.
