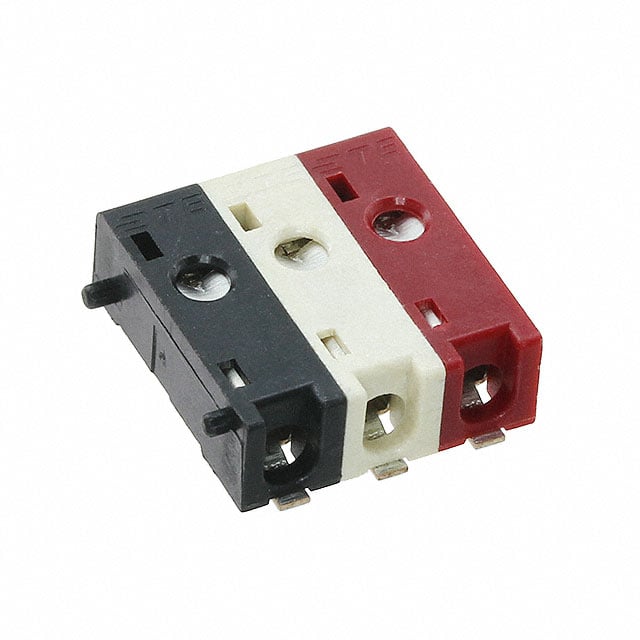

The TE Connectivity 2834006-3 is a 3-position, 4.00mm pitch modular releasable poke-in connector designed for wire-to-board connectivity. It features a surface mount, right angle termination with solder contacts, making it suitable for compact designs. The poke-in contact allows for easy and fast installation without special tools.
Electrical ratings include 6A current for 18 AWG wire and 5A for 20 and 22 AWG, with a maximum voltage rating of 400 VAC and dielectric strength of 1800 VAC. The operating temperature range is -40°C to 105°C. The housing is made of natural resin, and contacts are copper alloy with tin plating.
This connector is UL1977 approved and complies with IEC60838. It is commonly used in access controls, LED lighting, small appliances, and thermostats. The modular design offers flexibility in configuration, and color options (natural housing) aid in identification.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.95 | $0.95 |
| 10+ | $0.80 | $0.80 |
| 100+ | $0.68 | $0.68 |
| 600+ | $0.62 | $0.62 |
| 1,200+ | $0.57 | $0.57 |
| 2,400+ | $0.54 | $0.54 |
| 4,800+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
4.00mm.
6A for 18 AWG, 5A for 20 and 22 AWG.
400 VAC maximum.
Surface mount, right angle.
18 AWG, 20 AWG, and 22 AWG.
-40°C to 105°C.
