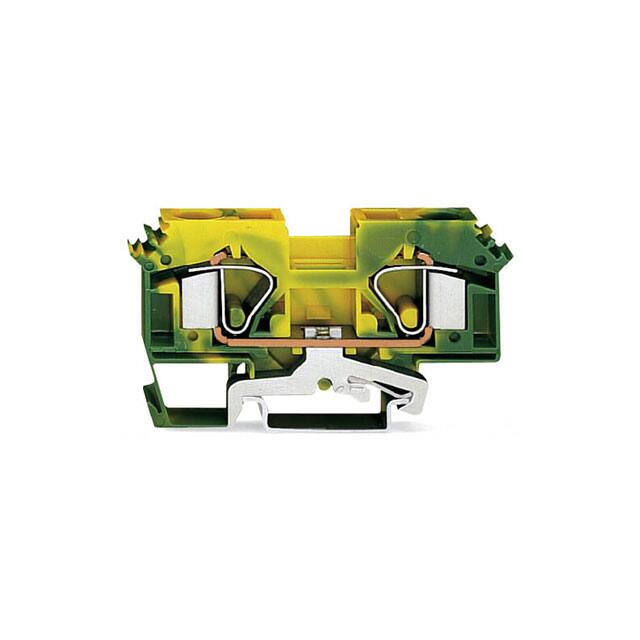

283-607 2-conductor ground terminal block with CAGE CLAMP® connection, rated for 16 mm² solid/fine-stranded wire, green-yellow housing, for DIN-35 rail mounting.
Mfr Part #:

283-607

Available from 1 distributors
Mfr Name: Wago Corporation
Wago Corporation
2-conductor ground terminal block with CAGE CLAMP® connection, rated for 16 mm² solid/fine-stranded wire, green-yellow housing, for DIN-35 rail mounting.
✓ Total Stock: 15 pcs
$ Price Range: $13.33 - $26.25

283-607 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

283-607 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Terminal
Termination Style
Type
Weight
Width
Wire Gauge or Range
View Similar Products (0)

283-607 Description

Short technical summary and product information.

The WAGO 283-607 is a 2-conductor ground terminal block designed for DIN-35 rail mounting. It features CAGE CLAMP® spring push-in termination for fast and reliable wiring of solid or fine-stranded conductors from 0.2 to 16 mm² (24 to 6 AWG). The terminal block is rated according to IEC/EN 60947-7-2 and is intended for ground or earth potential applications.



With a width of 12 mm, a length of 80 mm, and a height of 37.5 mm from the DIN-rail, this compact component fits neatly into control cabinets and junction boxes. The insulating material is Polyamide 66 (PA 66), and the housing is green-yellow for clear identification as a grounding terminal. Front-entry wiring and a strip length of 16 to 17 mm simplify installation.



The terminal block includes lateral marker slots for labeling and has a fire load of 0.449 MJ. It weighs approximately 42 g. The standard order amount is 25 pieces per package. This part is RoHS3 compliant and REACH unaffected, though compliance data is unverified.

283-607 Quick Information

Product Type: Ground Terminal Block
Canonical Name: 2-conductor ground terminal block
Subcategory: DIN Rail Terminal Block

283-607 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

283-607 Estimated Pricing

Qty Low High
1+ $26.25 $26.25
10+ $18.83 $18.83
25+ $16.87 $16.87
50+ $15.71 $15.71
100+ $14.78 $14.78
250+ $13.85 $13.85
500+ $13.33 $13.33

Estimated market price range - modelled values for guidance only, not live distributor offers.

283-607 Features

  • 2-conductor ground terminal block.
  • CAGE CLAMP® spring push-in termination.
  • Accepts 0.2 to 16 mm² wire.
  • Green-yellow PA 66 housing.
  • DIN-35 rail mounting.

283-607 Applications

  • Grounding in control cabinets.
  • Earth potential distribution.
  • Industrial panel wiring.

283-607 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this terminal block have?

It has 2 positions (connection points) and 1 potential.

What wire sizes does the 283-607 accept?

It accepts solid and fine-stranded wires from 0.2 to 16 mm² (24 to 6 AWG).

What termination style does this terminal block use?

It uses CAGE CLAMP® push-in spring termination.

What is the mounting type for the 283-607?

It mounts on DIN 35 rail (35 x 15 and 35 x 7.5).

What color is the housing?

The housing is green-yellow.

What is the insulating material?

The insulating material is Polyamide 66 (PA 66).

What is the width of this terminal block?

The width is 12 mm (0.472 in).
