| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clamp Material | |
| Clamping Screw Material | |
| Color | |
| Contact Resistance | |
| Current | |
| Current Rating | |
| Features | |
| Flammability Rating | |
| Housing Material | |
| Insulation Resistance | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Operating Temperature Range | |
| PC Board Hole Diameter | |
| PC Board Thickness | |
| Pitch | |
| Positions Per Level | |
| Tape & Reel | |
| Terminal Material | |
| Tightening Torque | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Gauge Range | |
| Wire Stripping Length | |
| Wire Termination |

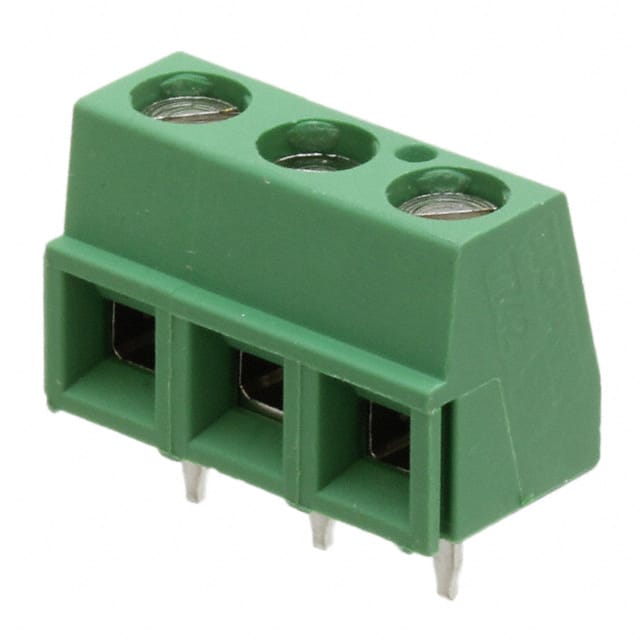

The TE Connectivity 282837-3 is a 3 position wire to board terminal block designed for reliable PCB connections. It features a 5.08mm pitch and a single level configuration, accepting wire gauges from 16 to 30 AWG. The terminal block uses a screw rising cage clamp termination mechanism, ensuring secure wire retention with a recommended tightening torque of 0.5 Nm.
Electrical ratings include a maximum current of 13.5 A and a maximum voltage of 300 V, with a contact resistance of less than 15 mOhm and insulation resistance greater than 1000 MOhm at 500 VDC. The operating temperature range spans from -40°C to +110°C, making it suitable for a variety of environments.
Mechanically, the component is through hole mounted with a horizontal mating orientation relative to the board. The green housing is made of PA 6-6 with a UL 94-V0 flammability rating. The clamping screw is M3 brass with nickel plating, while the clamp and terminal materials are brass with nickel or tin plating respectively. A side interlocking feature allows for secure stacking of multiple units.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.97 | $1.97 |
| 10+ | $1.42 | $1.42 |
| 25+ | $1.01 | $1.01 |
| 50+ | $0.92 | $0.92 |
| 100+ | $0.72 | $0.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 5.08mm (0.200 inches).
The maximum current rating is 13.5 A and the maximum voltage rating is 300 V.
It accepts wire gauges from 16 AWG to 30 AWG.
The mounting type is through hole.
The operating temperature range is -40°C to +110°C.
