| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,200 pcs
|
4200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
249 pcs
|
249 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Centerline | |
| Color | |
| Current | |
| ELV | |
| Features | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Pitch | |
| Positions Per Level | |
| Screw Flange | |
| Voltage | |
| Wire Gauge | |
| Wire Termination |

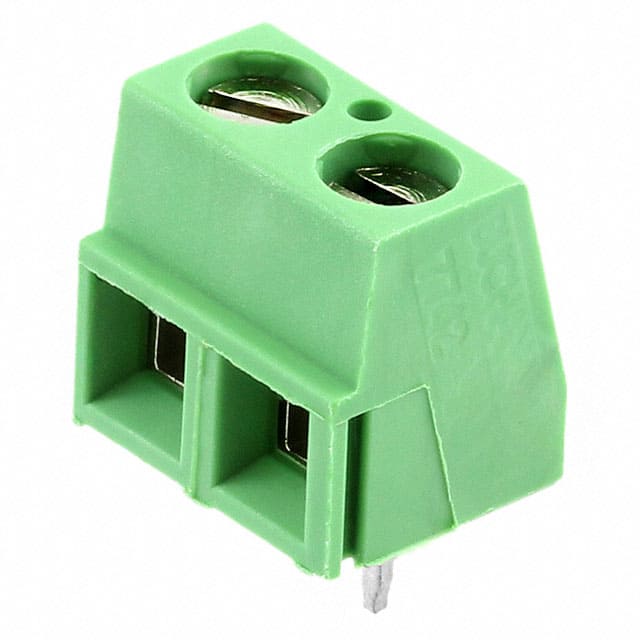

The TE Connectivity 282837-2 is a 2-position wire receptacle terminal block designed for PCB mounting. It features a 5.08mm pitch, side wire entry, and screw rising cage clamp termination for reliable wire connections. The green housing is made of polyamide 6.6 GF with UL 94V-0 flammability rating. The contact base is brass with tin plating, and screws are brass with nickel plating. Electrical ratings include 13.5A current and 250VAC voltage. It accepts solid wires from 0.03 to 1.50 mm² (AWG 30-16) and stranded wires from 0.03 to 1.00 mm². The PCB tail length is 3.5mm. The component includes side interlocking for modular assembly. It is through-hole mounted and suitable for wave soldering up to 240°C. The terminal block is RoHS and ELV compliant. It is commonly used in wire-to-board applications in industrial control, power supplies, and building automation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.95 | $0.95 |
| 10+ | $0.67 | $0.67 |
| 25+ | $0.60 | $0.60 |
| 50+ | $0.54 | $0.54 |
| 100+ | $0.50 | $0.50 |
| 300+ | $0.39 | $0.39 |
| 600+ | $0.37 | $0.37 |
| 1,200+ | $0.35 | $0.35 |
| 5,100+ | $0.33 | $0.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 positions.
5.08mm.
13.5 A.
250 VAC (datasheet); note a conflict with existing DB value of 300 V.
Through Hole.
16-28 AWG.
Screw - Rising Cage Clamp.
