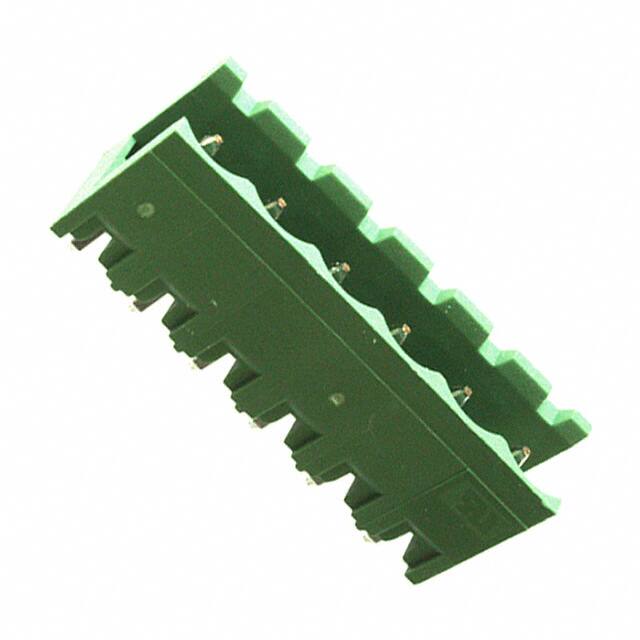

282825-6 TE Connectivity Buchanan 282825-6 is a 6-position, single-row, vertical, partially shrouded PCB header with 5.08mm pitch, rated 15A and 300VAC.
Mfr Part #:

282825-6

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity Buchanan 282825-6 is a 6-position, single-row, vertical, partially shrouded PCB header with 5.08mm pitch, rated 15A and 300VAC.
✓ Total Stock: 195 pcs
$ Price Range: $1.01

282825-6 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
195 pcs
On Request
195 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

282825-6 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector System
Contact Base Material
Contact Mating Finish
Current
Current Rating (Max)
Features
Halogen Free
Header Orientation
Housing Material
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Number of Rows
Operating Temperature
Operating Temperature Range
Pitch
Positions Per Level
Tape & Reel
Termination Style
Type
Voltage
View Similar Products (0)

282825-6 Description

Short technical summary and product information.

The TE Connectivity Buchanan 282825-6 is a 6-position, single-row, vertical PCB terminal block header designed for wire-to-board applications. It features a partially shrouded header type with a 5.08mm pitch and through-hole solder termination. The header is rated for 15A maximum current and 300VAC maximum voltage, making it suitable for power and signal circuits. The contact mating area is plated with tin, and the contact base material is copper magnesium. The housing is made of PA 66 and is green in color. The operating temperature range is -40 to 105°C. The header is wave solder capable to 240°C. It is packaged in a box of 200 pieces.

282825-6 Quick Information

Product Type: PCB Terminal Block Header
Canonical Name: TE Connectivity Buchanan 282825-6 PCB Terminal Block Header, 6 Position, 5.08mm Pitch, Vertical, Through Hole
Subcategory: Partially Shrouded Header

282825-6 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Does not contain REACH SVHC

282825-6 Estimated Pricing

Qty Low High
1,200+ $1.01 $1.01

Estimated market price range - modelled values for guidance only, not live distributor offers.

282825-6 Features

  • 6 positions in a single row.
  • 5.08mm pitch for compact layouts.
  • Rated for 15A and 300VAC.
  • Vertical through-hole solder mounting.
  • Partially shrouded header design.

282825-6 Applications

  • Wire-to-board power connections.
  • Signal distribution on PCBs.
  • Industrial control panel wiring.
  • Power supply output headers.

282825-6 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 282825-6 have?

6 positions in a single row.

What is the pitch of this header?

5.08 mm (0.200 inches).

What is the current and voltage rating?

15 A maximum current and 300 VAC maximum voltage.

What is the mounting type?

Through hole with solder termination.

What is the operating temperature range?

-40 to 105 °C.

What is the housing material?

PA 66 (polyamide).

Is this component RoHS compliant?

Yes, it is EU RoHS Directive 2011/65/EU compliant.
