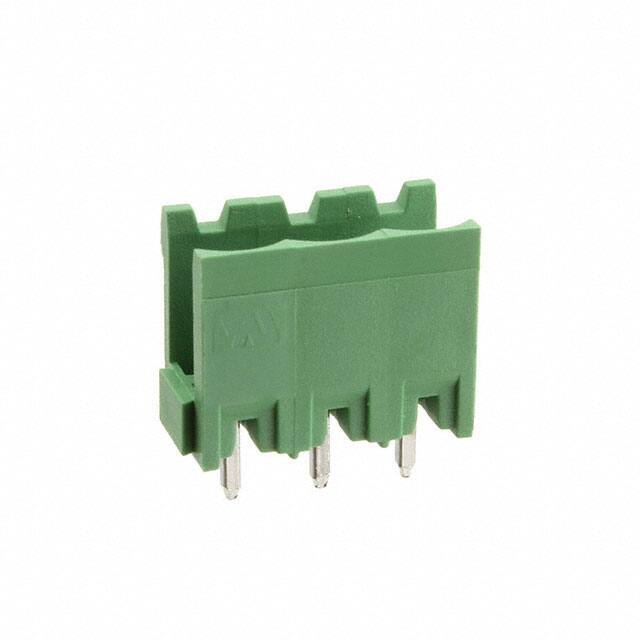

282821-3 TE Connectivity 282821-3 is a 3-position, 5.00mm pitch terminal block header with shrouded male pins, through hole mounting, and vertical orientation. Rated for 300V and 15A.
Mfr Part #:

282821-3

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 282821-3 is a 3-position, 5.00mm pitch terminal block header with shrouded male pins, through hole mounting, and vertical orientation. Rated for 300V and 15A.
✓ Total Stock: 200 pcs

282821-3 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
200 pcs
On Request
200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

282821-3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
Tape & Reel
Termination Style
Type
Voltage
View Similar Products (0)

282821-3 Description

Short technical summary and product information.

This is a terminal block header from TE Connectivity, part number 282821-3. It features 3 positions arranged in a single level with a pitch of 5.00mm. The header has male pins that are shrouded on two sides, providing protection and alignment. It is designed for through hole mounting with solder termination.



The header is rated for 300V and 15A, suitable for power distribution in industrial and commercial applications. It operates over a temperature range of -40°C to 110°C. The contact mating finish is tin, ensuring reliable connections.



The component is green in color and includes an interlocking (side) feature for secure mating with compatible plugs. It is RoHS3 compliant and has an MSL of 1 (unlimited). The vertical orientation allows for efficient use of board space.

282821-3 Quick Information

Product Type: Header, Male Pins, Shrouded
Canonical Name: TE Connectivity 282821-3 Header, Male Pins, Shrouded, 3 Position, 5.00mm Pitch, Through Hole, Vertical
Subcategory: Headers, Plugs and Sockets

282821-3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: Non-Compliant

282821-3 Features

  • 3 positions with 5.00mm pitch spacing.
  • Shrouded male pins for protection.
  • Through hole solder termination.
  • Rated for 300V and 15A.
  • Operating temperature -40°C to 110°C.

282821-3 Applications

  • Ideal for industrial control panel wiring.
  • Used in power distribution applications.
  • Suitable for signal connection in automation.
  • Common in building management systems.

282821-3 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 282821-3 have?

It has 3 positions.

What is the pitch of this terminal block header?

The pitch is 5.00mm.

What is the current rating of the 282821-3?

It is rated for 15A.

What is the voltage rating?

It is rated for 300V.

What is the mounting type?

Through hole mounting.

What is the operating temperature range?

-40°C to 110°C.

Does the header have any special features?

It features side interlocking for secure mating.
