| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Circuit Application | |
| Color | |
| Connector Mounting Type | |
| Connector System | |
| Contact Base Material | |
| Contact Mating Finish | |
| Current | |
| ELV | |
| Features | |
| Halogen Free | |
| Header Orientation | |
| Header Type | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Method | |
| Packaging Quantity | |
| Pitch | |
| Positions Per Level | |
| Solder Process Capability | |
| Tape & Reel | |
| Termination Method to Printed Circuit Board | |
| Termination Post & Tail Length | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Size (AWG) | |
| Wire size |

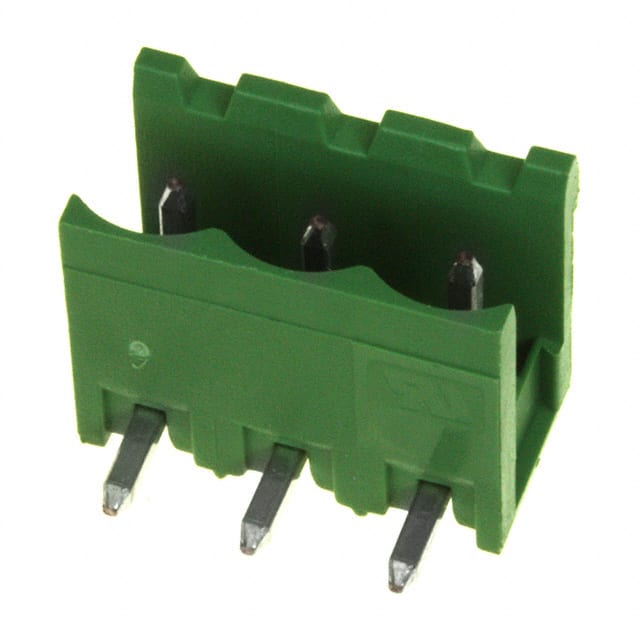

The TE Connectivity 282811-3 is a PCB terminal block header designed for wire-to-board connections. It features 3 positions in a single row with a 5mm pitch. The header is right angle oriented and mounts via through hole with solder termination. The housing is made of green polyamide 6.6 GF, and contacts are copper alloy with tin plating.
Rated for 15A and 300VAC, this header supports wire sizes from 30 to 12 AWG (0.05 to 3 mm²). It includes a side interlocking feature for modular stacking. The operating temperature range is -40 to 105°C, making it suitable for various environments.
Packaged in cartons of 200 pieces, the 282811-3 is compliant with RoHS, REACH, ELV, and China RoHS directives. It is suitable for power and signal circuit applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.55 | $1.55 |
| 10+ | $1.12 | $1.12 |
| 25+ | $0.97 | $0.97 |
| 50+ | $0.88 | $0.88 |
| 100+ | $0.81 | $0.81 |
| 200+ | $0.70 | $0.70 |
| 600+ | $0.66 | $0.66 |
| 1,000+ | $0.61 | $0.61 |
| 4,800+ | $0.54 | $0.54 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
5.00 mm (0.197 inches).
15 A.
300 VAC.
Through hole.
30 to 12 AWG (0.05 to 3 mm²).
-40 to 105 °C.
