| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
29,853 pcs
|
29853 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4,675 pcs
|
4675 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4,549 pcs
|
4549 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
900 pcs
|
900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Compliance Standard | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Flammability Rating | |
| Housing Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Weight |

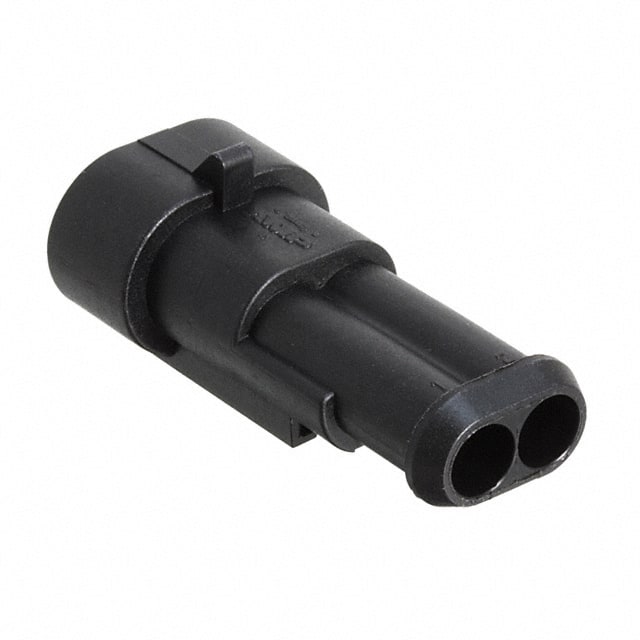

The TE Connectivity 282104-1 is a 2-position receptacle housing from the AMP SUPERSEAL 1.5 series, designed for automotive and industrial applications requiring reliable connections in harsh environments. This free hanging (in-line) housing accepts tab contacts with crimp termination and features a locking ramp fastening system for secure mating.
Key specifications include a 6.00mm pitch, single row configuration, and an operating temperature range of -40°C to 125°C. The housing is molded from black PA66-GF material with a UL94 V-2 flammability rating and complies with IEC 60335-1. The part weighs 3.72g and is designed for use with TE Connectivity AMP SUPERSEAL 1.5 contacts.
This housing is part of a family that includes alternate color variants (282104-2 gray, 282104-3 green) and is commonly used in automotive wiring harnesses, engine control units, and other demanding applications where vibration resistance and environmental sealing are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.80 | $0.80 |
| 10+ | $0.70 | $0.70 |
| 25+ | $0.62 | $0.62 |
| 100+ | $0.59 | $0.59 |
| 250+ | $0.55 | $0.55 |
| 500+ | $0.53 | $0.53 |
| 1,000+ | $0.49 | $0.49 |
| 1,500+ | $0.47 | $0.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 282104-1 has 2 positions in a single row configuration.
The pitch is 6.00mm (0.236 inches).
Free hanging (in-line) mounting.
-40°C to 125°C.
Black PA66-GF (glass-filled nylon) with UL94 V-2 flammability rating.
