| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,987 pcs
|
6987 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,360 pcs
|
3360 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
650 pcs
|
650 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
81 pcs
|
81 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Method | |
| Packaging Quantity | |
| Pitch |

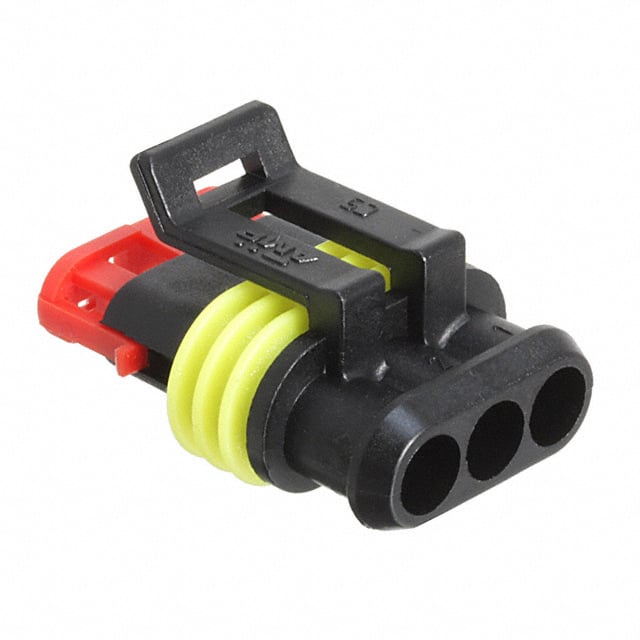

The TE Connectivity 282087-1 is a three-position plug housing designed for the AMP Superseal 1.5 series connector system. This housing accommodates female socket contacts with a 1.5mm mating tab width and a 6.00mm pitch. It is a sealed, IP67-rated connector suitable for wire-to-board, wire-to-device, and wire-to-wire applications.
Key mechanical specifications include a latch lock fastening type, free hanging (in-line) mounting, and a black PA GF body material. The housing supports 24 VDC operating voltage and is rated for an operating temperature range of -40°C to 125°C. It features integrated primary locking and is polarized to ensure correct mating.
The connector is designed for crimp termination and is serviceable, with single wire seals (SWS) for environmental protection. The housing is available in bag packaging with a standard quantity of 650 pieces. It is always EU RoHS/ELV compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.69 | $0.69 |
| 10+ | $0.59 | $0.59 |
| 25+ | $0.53 | $0.53 |
| 100+ | $0.50 | $0.50 |
| 250+ | $0.44 | $0.44 |
| 1,000+ | $0.42 | $0.42 |
| 2,600+ | $0.40 | $0.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
6.00mm (0.236 inches).
Operating voltage is 24 VDC, with nominal voltage architecture of 12V and 24V.
Free hanging (in-line) mounting.
Yes, it is sealed with IP67 protection.
-40°C to 125°C.
Latch lock.
