| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Country of Origin | |
| Current | |
| Depth | |
| Design | |
| Disconnect Type | |
| Fuse Type | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Terminal | |
| Termination Style | |
| Type | |
| Voltage | |
| Weight | |
| Width | |
| Wire Gauge or Range |

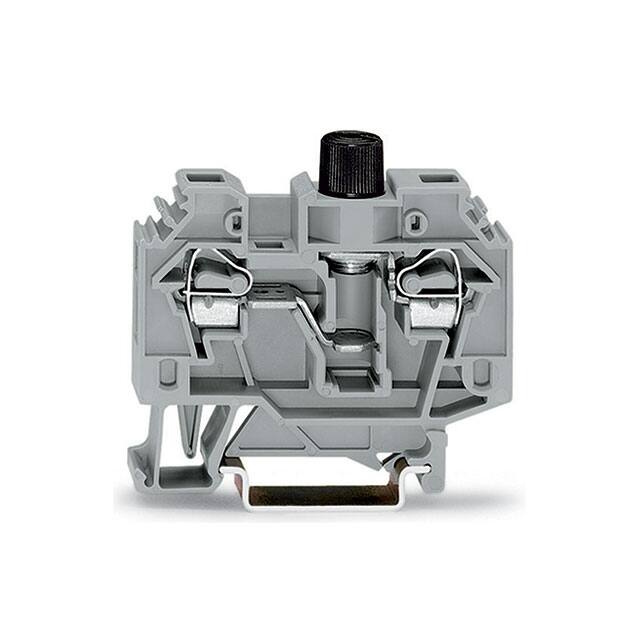

The Wago 282-122 is a 2-conductor fuse terminal block designed for DIN-rail mounting. It accepts 5 x 20 mm miniature metric fuses and uses CAGE CLAMP connection technology for fast, maintenance-free wiring. The terminal block supports solid and fine-stranded copper conductors from 0.2 to 6 mm² (24 to 10 AWG) with a strip length of 12 to 13 mm. Side-entry wiring simplifies installation.
Rated at 500 V (III/3) and 10 A, with a rated surge voltage of 6 kV. The disconnect type is fuse, and the fuse type is 5 mm x 20 mm. The gray housing is designed for DIN-35 rail and has a width of 13 mm, a height of 54.5 mm, and a depth of 62 mm. It offers two connection points and two potentials in a single level.
| Qty | Low | High |
|---|---|---|
| 1+ | $28.03 | $28.03 |
| 10+ | $20.14 | $20.14 |
| 25+ | $18.06 | $18.06 |
| 50+ | $16.83 | $16.83 |
| 100+ | $15.86 | $15.86 |
| 250+ | $14.87 | $14.87 |
| 500+ | $14.32 | $14.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated voltage is 500 V (III/3) and the rated current is 10 A.
The terminal block accepts a 5 mm x 20 mm miniature metric fuse.
Solid and fine-stranded copper conductors from 0.2 to 6 mm² (24 to 10 AWG) are compatible.
It is designed for DIN-35 rail mounting (35 x 15 and 35 x 7.5 mm).
