| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

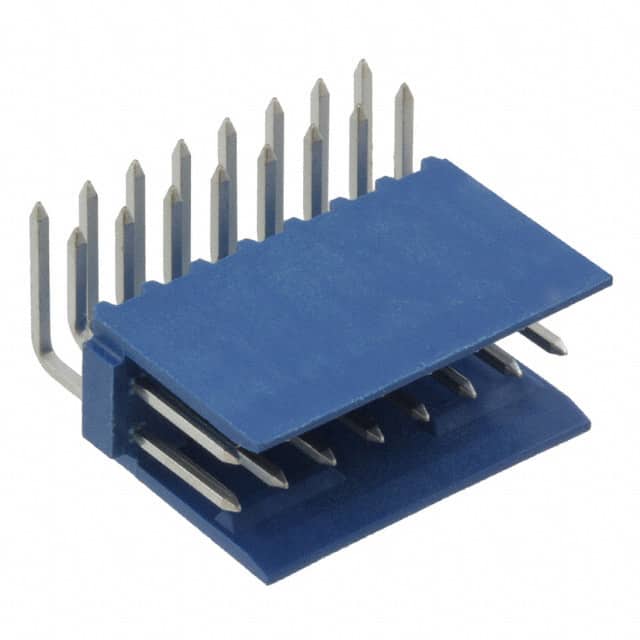

The TE Connectivity 281742-8 is a 16-position, 2.54mm pitch header connector designed for board-to-cable wire applications. It features a right angle through-hole mounting style with solder termination, making it suitable for compact PCB layouts where space is limited.
The connector is shrouded with a 2-wall design and includes a friction lock for secure mating. It has two rows of male pins with square contacts made of phosphor bronze and a tin finish, ensuring reliable electrical connections. The insulation is made of thermoplastic with a UL94 V-0 flammability rating and is colored blue.
With an operating temperature range of -40°C to 100°C, this connector can be used in various environments. The contact length is 7.00mm, and the insulation height is 7.62mm. All 16 positions are loaded, and the row spacing matches the pitch at 2.54mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.44 | $2.44 |
| 10+ | $2.13 | $2.13 |
| 25+ | $2.04 | $2.04 |
| 100+ | $1.90 | $1.90 |
| 250+ | $1.72 | $1.72 |
| 500+ | $1.58 | $1.58 |
| 1,000+ | $1.41 | $1.41 |
| 2,500+ | $1.32 | $1.32 |
| 5,000+ | $1.29 | $1.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The header has 16 positions.
The pitch is 2.54mm (0.100").
The mounting type is through hole, right angle.
The operating temperature range is -40°C to 100°C.
The contacts are made of phosphor bronze with a tin finish.
Yes, it has a shrouded design with 2 walls and a friction lock.
The insulation is made of thermoplastic with UL94 V-0 flammability rating.
