| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Flammability Rating | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

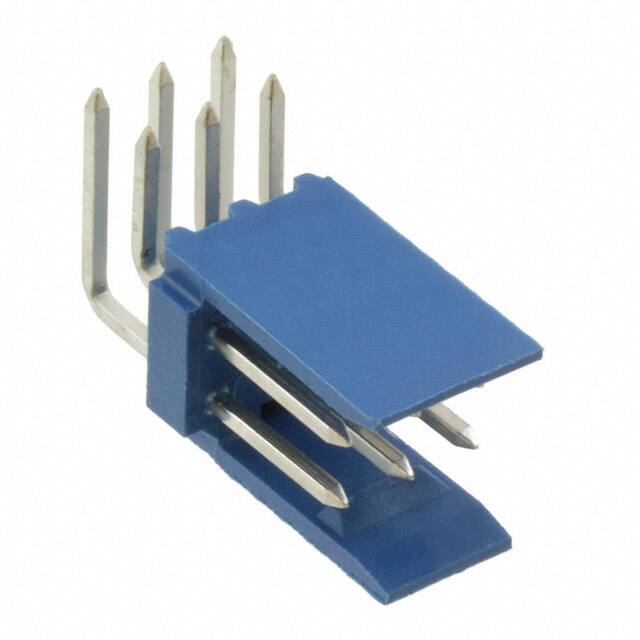

The TE Connectivity 281742-3 is a 6-position shrouded header with male square pins arranged in 2 rows at a 2.54mm (0.100 inch) pitch and row spacing. It is designed for board-to-cable/wire applications, featuring a through hole right angle mounting style with solder termination.
The connector uses phosphor bronze contacts with a tin finish and is insulated with a blue thermoplastic housing rated UL94 V-0. The 2-wall shrouding provides guided mating and the friction lock fastening type ensures secure connection. The insulation height is 7.62mm (0.300 inch) and the contact length is 7.00mm (0.276 inch).
This header operates within a temperature range of -40°C to 100°C and is suitable for use in a variety of industrial and commercial electronic assemblies requiring a reliable wire-to-board interconnect.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
| 10+ | $1.28 | $1.28 |
| 100+ | $1.09 | $1.09 |
| 500+ | $0.96 | $0.96 |
| 1,000+ | $0.91 | $0.91 |
| 2,500+ | $0.81 | $0.81 |
| 5,000+ | $0.74 | $0.74 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100 inches).
It has 6 positions, all loaded, in 2 rows.
Through hole, right angle with solder termination.
-40°C to 100°C.
