| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,074 pcs
|
3074 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Housing Flammability Rating | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mating Header Series | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Packaging Type | |
| Pitch | |
| Tape & Reel | |
| UL | |
| Wire Gauge | |
| Wire Type |

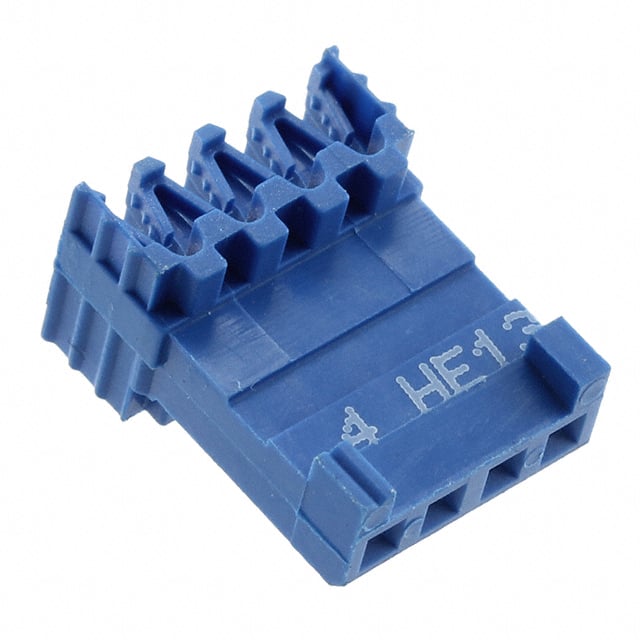

The TE Connectivity 281709-4 is a 4-position single-row rectangular connector plug designed for free hanging (in-line) right angle mounting. It features IDC (Insulation Displacement Contact) termination for 24 AWG discrete wire, enabling fast and reliable wire-to-board connections without stripping.
Key specifications include a 2.54mm (0.100") pitch, gold-plated phosphor bronze female socket contacts with 16.0µin (0.41µm) gold finish thickness, and a PBT housing with UL 94 V-0 flammability rating. The connector mates with HE1302 series headers and is available in tube packaging.
This plug is suitable for internal wiring applications where space is limited and a secure, polarized connection is required. The IDC termination method reduces assembly labor and improves consistency compared to crimp or solder methods.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.12 | $1.12 |
| 10+ | $0.95 | $0.95 |
| 25+ | $0.89 | $0.89 |
| 50+ | $0.85 | $0.85 |
| 100+ | $0.81 | $0.81 |
| 250+ | $0.76 | $0.76 |
| 500+ | $0.72 | $0.72 |
| 1,000+ | $0.69 | $0.69 |
| 2,500+ | $0.64 | $0.64 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
This connector has 4 positions in a single row.
Free Hanging (In-Line), Right Angle.
It accepts 24 AWG discrete wire via IDC termination.
Phosphor bronze contacts with 16.0µin (0.41µm) gold finish.
UL 94 V-0.
It mates with HE1302 series headers.
